Trudoor TD-CHFM Heavy-Duty Full Mortise Concealed Continuous Gear Hinge

Trudoor's Choice for full mortise hinges
$95.37
Usually Ships:  Same Day
  • Typically used for new door applications
  • Fire-rated up to 90-minutes
  • Supports weights up to 450lbs

Available Options:

Clear

Product Overview

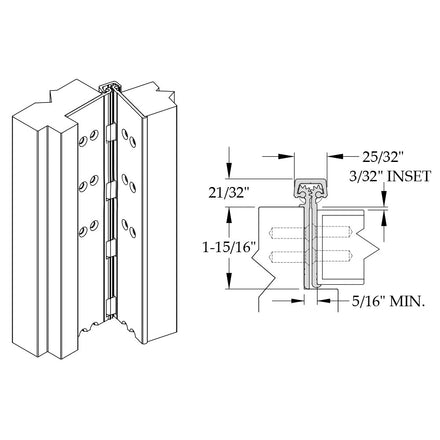

Trudoor TD-CHFM Heavy-Duty Full Mortise (Concealed Leaf) Continuous Gear Hinge, Grade-1, Fire-Rated

Heavy-duty aluminum continuous geared hinge – designed mainly for new door applications

  • Full concealed, heavy-duty grade-1
  • 3/32" door inset
  • Door edge protection lip
  • Eliminates door sag and binding
  • 48" door width maximum
  • 450 lbs. door weight maximum
  • Standard Lengths: 79", 83″, *95″

*Oversize handling fee applies (added at checkout)

Cross Reference

TD-CHFS hinges can be specified as a substitute or direct replacement for: ABH A240HD, Best/Stanley 662HD, Cal-Royal CRHD782240, Design Hardware FMHD, Hager 780-224HD, Ives 224, NGP HD2400, PBB CG31L, Pemko _FM_-HD1, Select SL24

made-in-usa

Brand

Length

83" (for 7'0" door), 79" (for 6'8" door), 95" (for 8'0" door)

Finishes

Dark Bronze Anodized Aluminum, Black Anodized Aluminum, Clear Anodized Aluminum

Continuous Hinge Type

Full Mortise (Concealed)

ANSI/BHMA Standard

ANSI/BHMA A156.26-2017

Usage

Heavy Duty

Material

Aluminum

Fasteners

12-24 x 3/4" undercut self drilling, thread forming tek machine screws

Door Applications

1-3/4″ Thick Doors

Door Weight

up to 450 lbs.

Door Width

36

Fire-Rating

Approved for use on metal swinging type fire doors rated up to and including 90 minutes, Wood doors up to 60 minutes

Buy American Act Compliance

Meets Buy American Act - Made in USA

Warranty

Limited Lifetime Warranty
