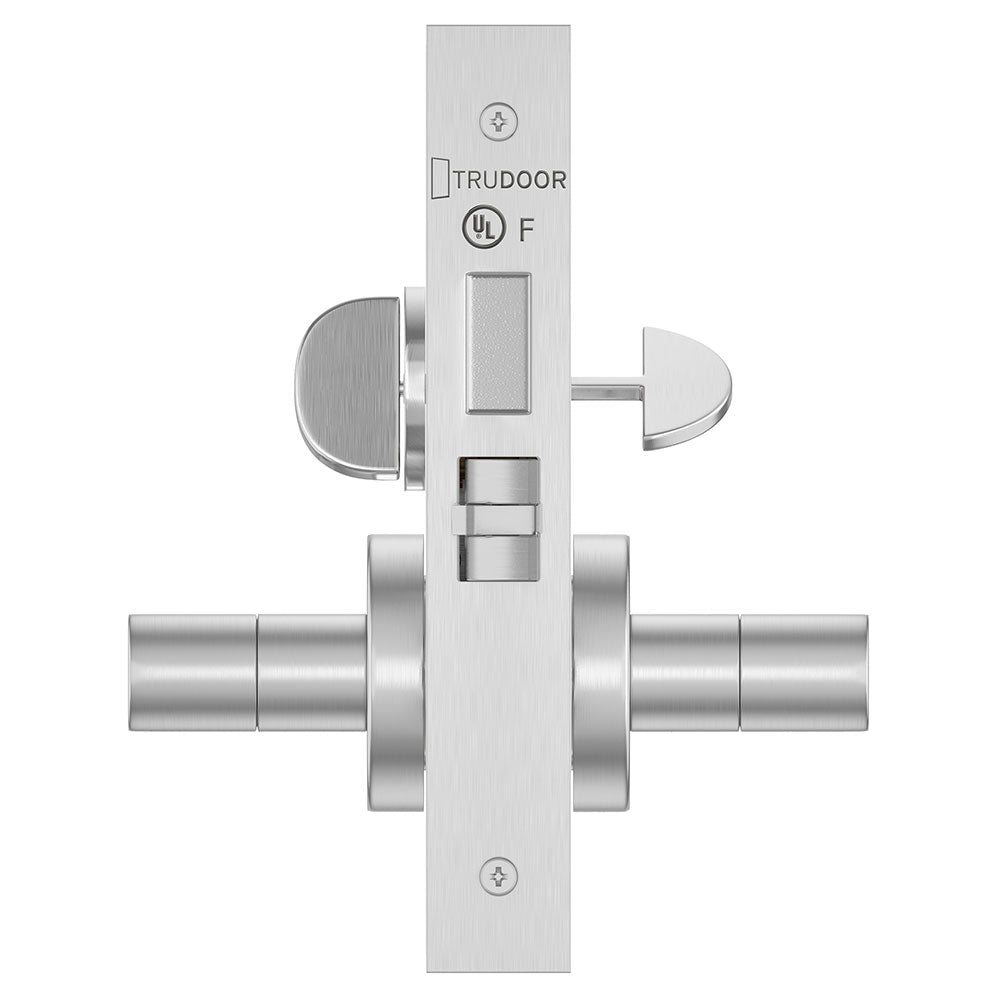

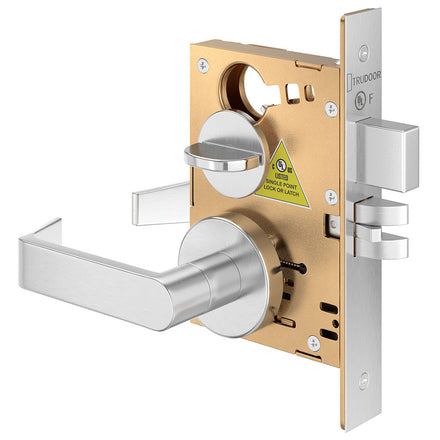

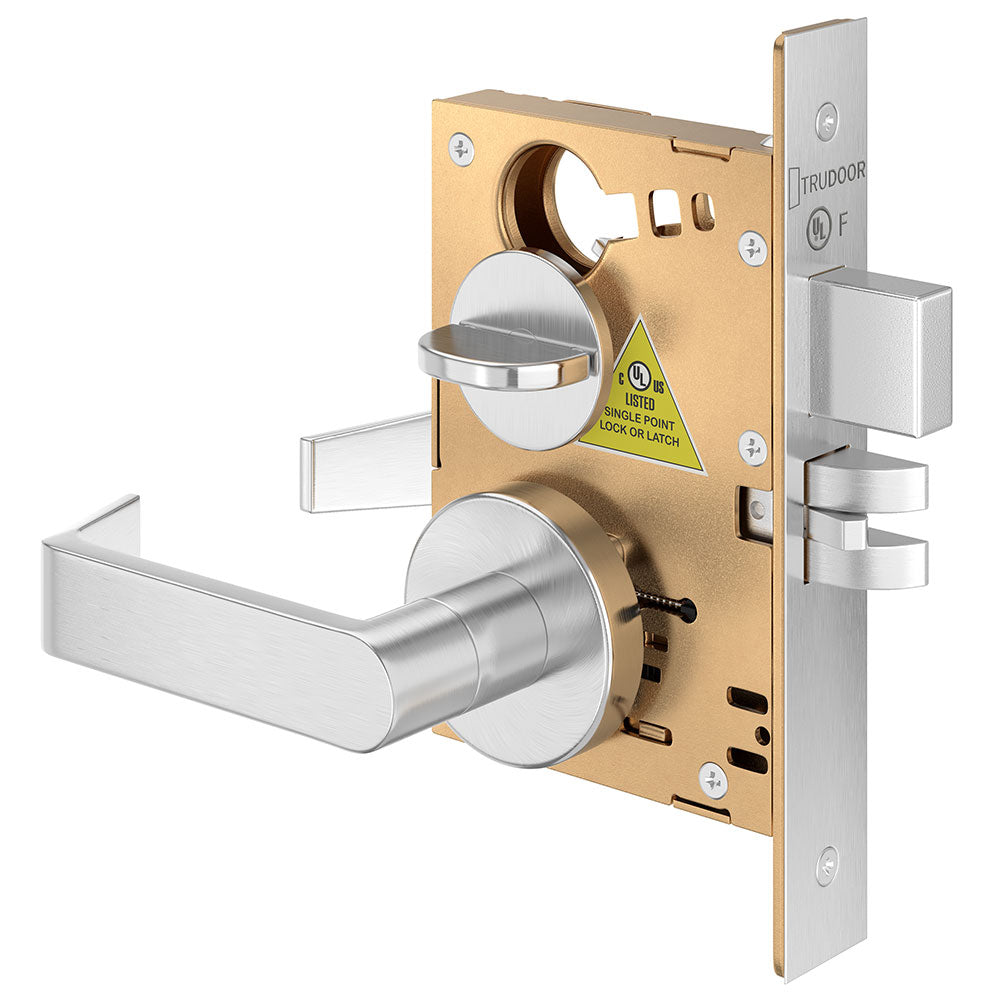

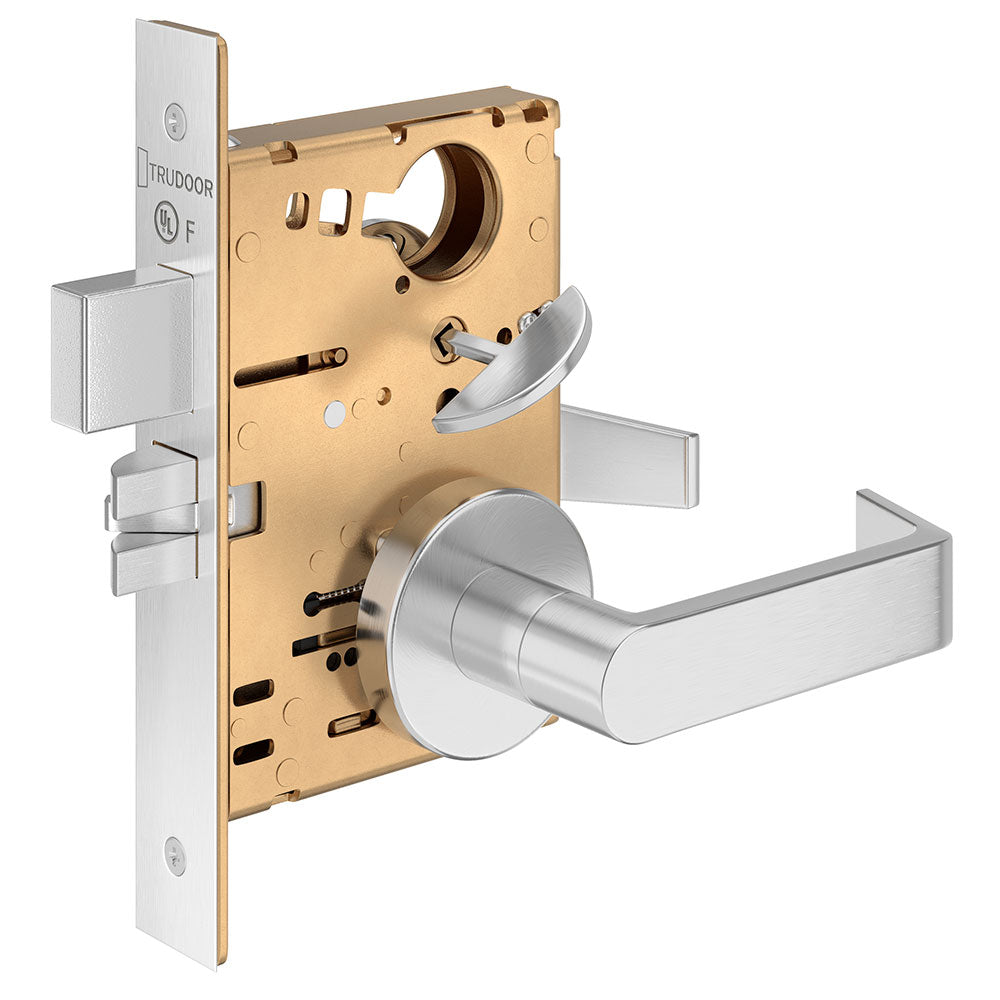

Trudoor ML119 Privacy, Bedroom or Bath Mortise Lock with Deadbolt with Sectional Lever Trim

$217.07
Usually Ships:  Same Day
  • Extra Heavy Duty, ANSI/BHMA Grade-1
  • ANSI Function F19 - Privacy
  • ADA Compliant, 3 Hour Fire-Rated

Available Options:

Clear

Product Overview

Trudoor ML1 Series Mortise Lock with SEC Sectional Lever Trim, ML1119 Privacy, Bedroom or Bath Mortise Lock with Deadbolt Function (ANSI F19)

The Trudoor® ML1 Series is our heaviest-duty lock and an ideal choice for a wide variety of applications that require consistent reliability and easy installation at an economical price. ML1 locks are for use on exterior or interior doors in office buildings, schools, medical & assisted living facilities, government facilities, hospitality, and other commercial, institutional, or industrial buildings.

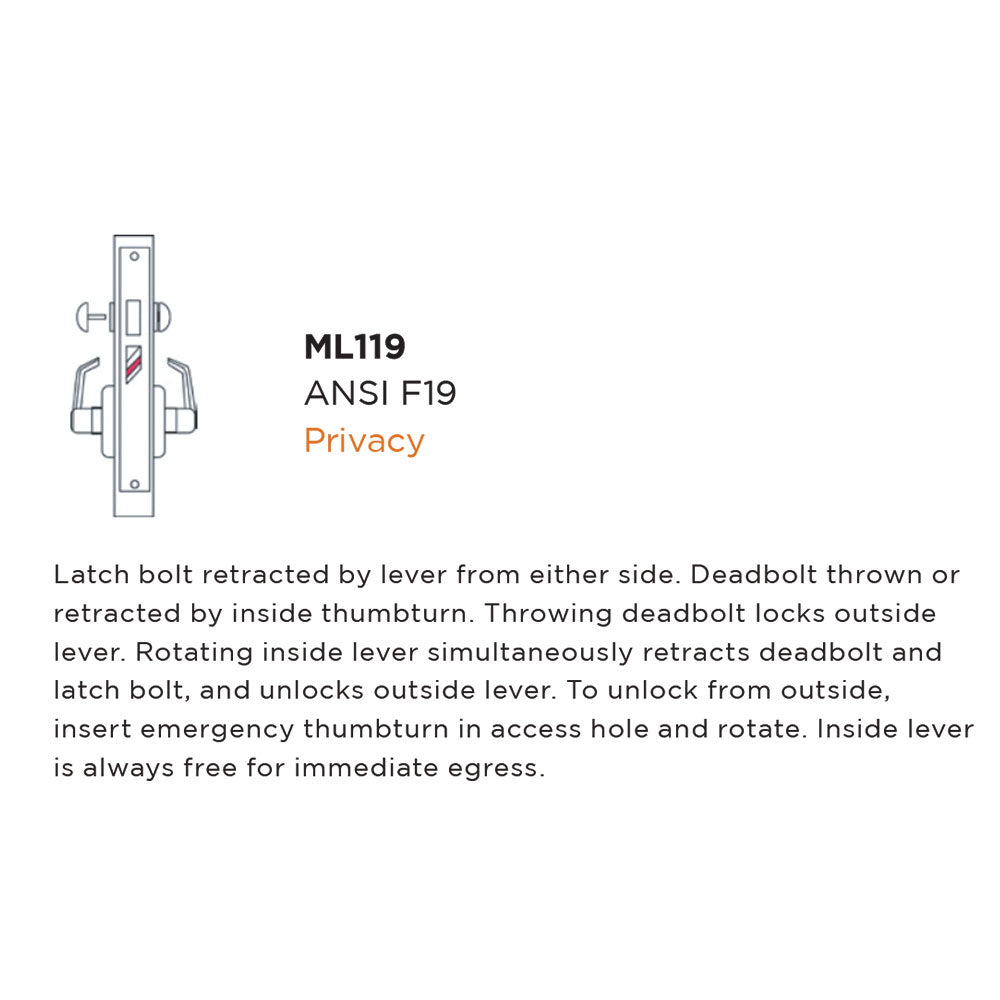

Privacy, ANSI Function F19: Latch bolt retracted by lever from either side. Deadbolt thrown or retracted by inside thumbturn. Throwing deadbolt locks outside lever. Rotating inside lever simultaneously retracts deadbolt and latch bolt, and unlocks outside lever. To unlock from outside, insert emergency thumbturn key in access hole and rotate. Inside lever is always free for immediate egress.

Features:

  • Extra Heavy Duty, ANSI/BHMA A156.13 - 2017 Grade 1 Operational and Security
  • Rust-proof heavy-duty zinc chromate steel lock case
  • Forged brass lever handles
  • Individual springs to prevent lever sag
  • Heavy-duty 3/4" latch bolt with anti-friction latch, easily reversible
  • 2 3/4" backset, for 1-3/4" thick metal or wood doors
  • Can be easily re-handed in the field
  • Door prep: ANSI/BHMA A156.115 or A156.115W modified per template (see template)

Code Compliance

  • Meets ANSI/BHMA A156.13 - 2017 Grade 1 standards
  • Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, exceeds 1,000,000 cycles
  • UL listed for “A” label 3 hour fire-rated doors, conforms to UL10C and UBC 7-2-1997
  • Meets ADA and ANSI A117.1 accessibility codes
  • Meets California code for 1/2" lever return to door face

Cross Reference

The ML119 can be specified as a substitute for: Accentra/Yale 8802FL, Arrow BM02, Best 45HL, Cal-Royal NM8440 / SC8440, Corbin Russwin ML2030, Design Hardware M-19, Dorma M1040, Falcon MA311, Marks 5LF, PDQ MR179, Sargent 8266, Schlage PM440 / L9440

Brand

Finishes

622 Matte Black, 626 Satin Chrome

Lock Function

Privacy

ANSI Function

F19

Usage

Heavy Duty

ANSI/BHMA Standard

Meets ANSI / BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards

Fire-Rating

UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Trim

SEC - Sectional lever trim

Latchbolt

Heavy duty ¾" latch bolt with anti-friction latch

Deadbolt

1" throw, brass chrome-plated with hardened steel rollers

Backset

2-3/4"

Case Size

5-31/32" H x 4-3/32" W x 27/32" D

Armored Front

1-1/4" W x 8" H x 3/32" D

Strike

ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard

Door Thickness

1-3/4"

Handing

Field-reversible handing without opening lock case

Warranty

Limited Lifetime Warranty
