Schlage

Schlage XE360M OFDSM Wireless Mortise Lock with Deadbolt, Privacy/Apartment Function

$897.60
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.13-2022 Grade 1
  • Privacy/Apartment Function
  • Smart Bluetooth and NFC mobile reader, with key override

Available Options:

Clear

Product Overview

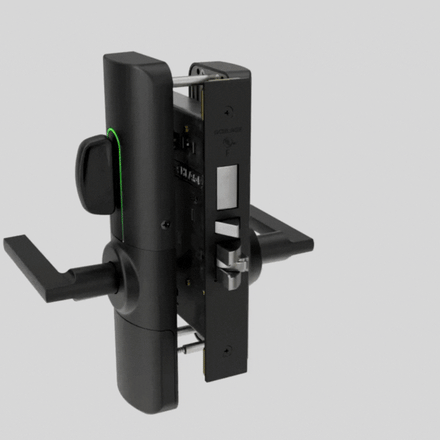

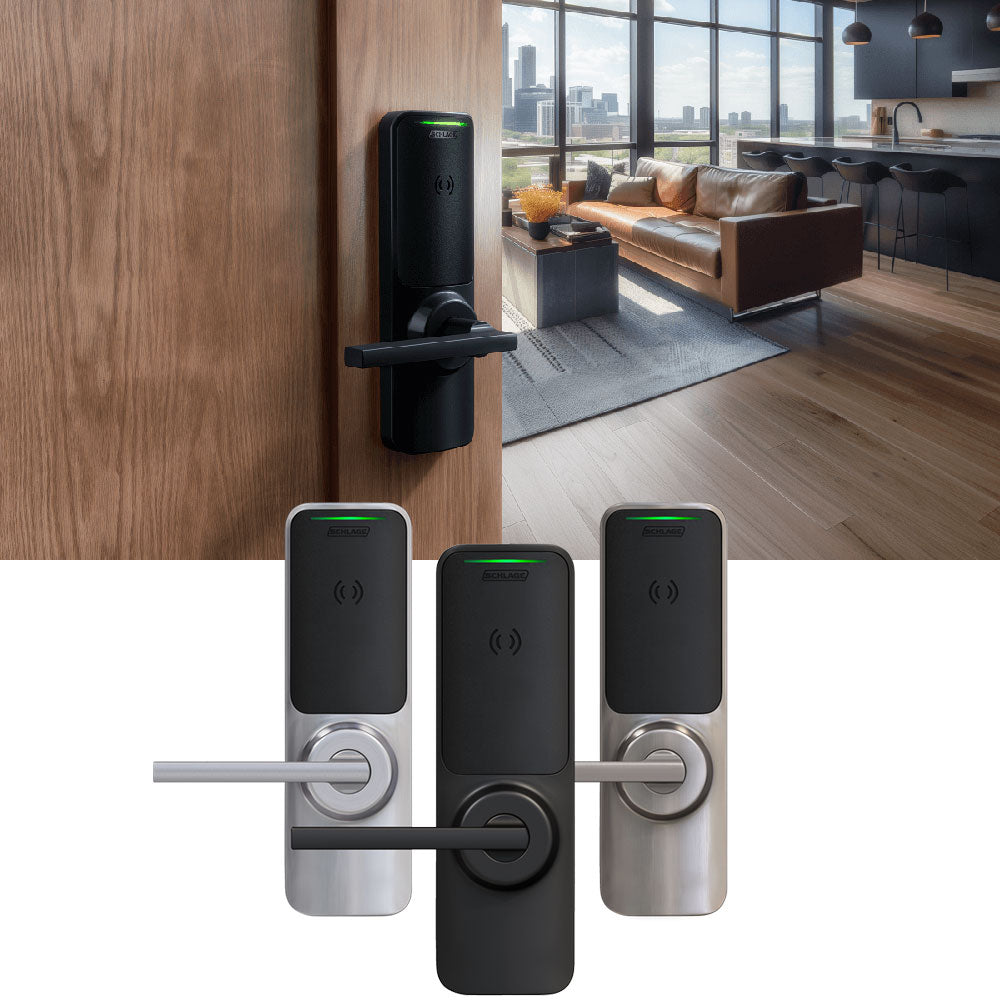

Schlage Electronics XE360M Wireless Mortise Lock with Deadbolt, Smart Bluetooth and NFC Mobile Reader, Privacy/Apartment Function, C Keyway, Fire-Rated, Field Reversible Handing

The XE360™ Series is the newest wireless lock family from Schlage. The XE360 mortise lock is designed with the options, features and style most desired by multifamily properties, at an attractive price point.

XE360 currently works within No-Tour or offline access control systems and supports the latest credential technologies.

The open architecture design of the XE360 allows it to be managed by Allegion software or be integrated into popular physical access control and Proptech systems through our PACS Alliance program. This enables customers to choose what best fits their requirements now and transition to another solution at any time.

Apartment Function: Lockset is normally secure. Inside lever always allows free egress. Inside push button or thumbturn may be used to select a passage or secured status. Opening the door, pressing the inside push button, or turning the thumbturn causes the lockset to toggle unsecured. While toggled unsecured, the lockset can only be secured while the door is closed by pressing the interior push button, turning the thumbturn, or using a normal credential on the exterior. Normal electronic access from the exterior is always allowed. Door Position Sensor (DPS) must be installed for proper functionality.

Privacy Function: Lockset is normally secure. Inside lever always allows free egress. Interior push button or thumbturn may be used to select a privacy status. The interior push button will disable normal electronic access from the exterior. Opening the door, pressing the interior push button a second time, or turning the thumbturn deactivates the privacy status. Door Position Sensor (DPS) must be installed for proper functionality.

  • Credential support includes Schlage MIFARE®, Bluetooth® and NFC mobile1
  • Advanced encryption keeps data and communications safe
  • Wireless configuration from connected smartphones and tablets
  • No-Tour or offline system capability
  • Ready for the future with the innovative FleX ModuleTM that allows for communication type, memory and encryption upgrades
  • Exceeds Grade 1 testing for exceptional quality and reliability
  • Open architecture – interoperable and simple for software alliances to integrate
  • Works seamlessly with other Schlage wireless locks, including Schlage Control2
  • Uniquely concealed key override standard on all locks (Schlage C keyway)
  • Door thickness: 1-3/4"
  • Backset: 2-3/4"
  • Latchbolt: Standard: 3/4" throw stainless steel latch bolt with anti-friction tongue
  • Deadbolt: 1" throw, stainless steel
  • Strike: Standard: 1-3/16" curved lip, ANSI, 1-1/4" x 4-7/8"; no box

Certifications

  • ANSI/BHMA A156.13-2022
  • ANSI/BHMA A156.25-2023 Locked Outdoor Type
  • ANSI/BHMA A156.5-2020
  • UL 294
  • ULC 60839
  • UL 10C 3-hour
  • CAN/ULC S104 3-hour
  • FCC Part 15
  • Industry Canada (IC)
  • Industry Canada (IC)-RSS210
  • ADA Compliant1
  • REACH
  • ROHS
  • TAA
  • FL12400, FL4613, FL1592, FL14482, FL10356
  • FL3905 (Mortise Deadbolt only)
Brand

Finishes

626 Satin Chrome, 622 Matte Black, 619 Satin Nickel

Lever Design

NEP (Neptune), LAT (Latitude)

ANSI/BHMA Standard

ANSI/BHMA A156.13-2022 Grade-1

Usage

Heavy Duty

Handing

On-site handing with included hex key

Reader Type

Smart; Bluetooth and NFC mobile

Cylinder & Keys

Schlage Classic C keyway, Conventional 6-pin cylinder with two keys

Keyway

Schlage C Keyway

Battery Life

Up to two 2 years 4 AA batteries, included

Users

Up to 2000

Warranty

1 Year
