Schlage

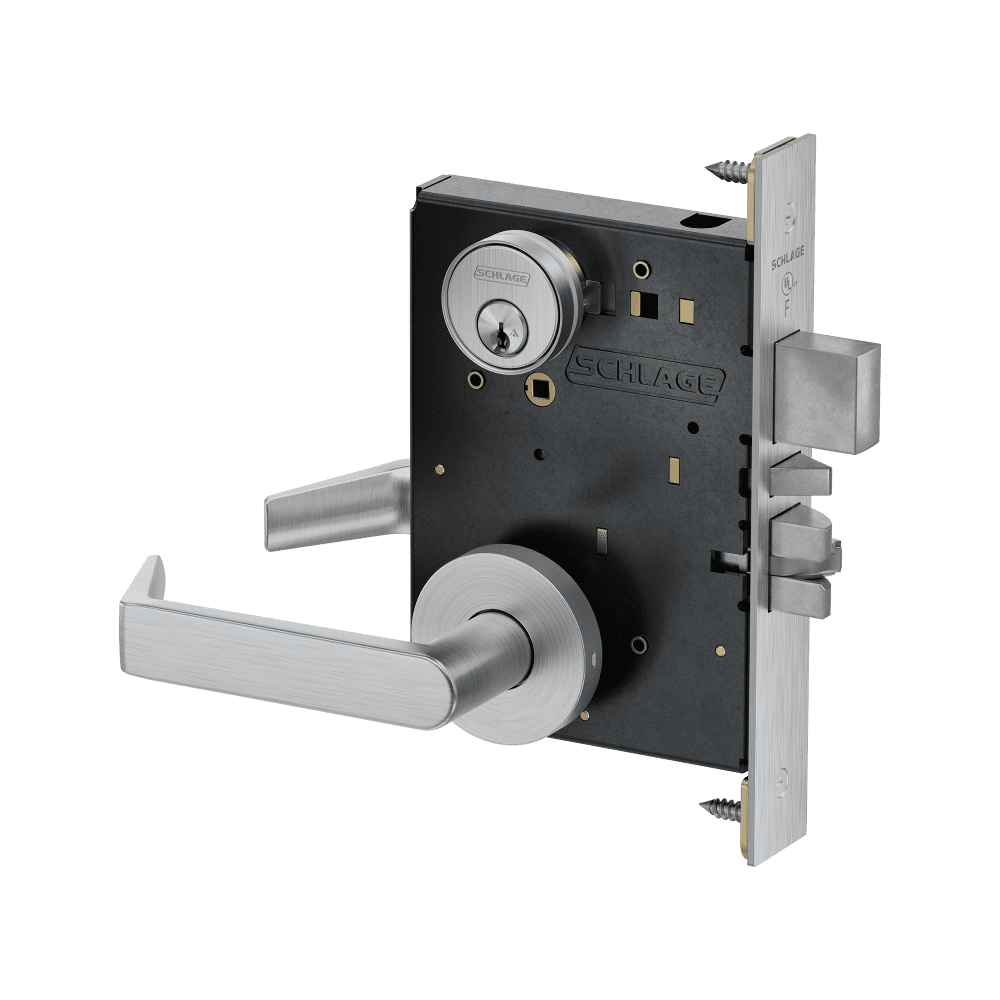

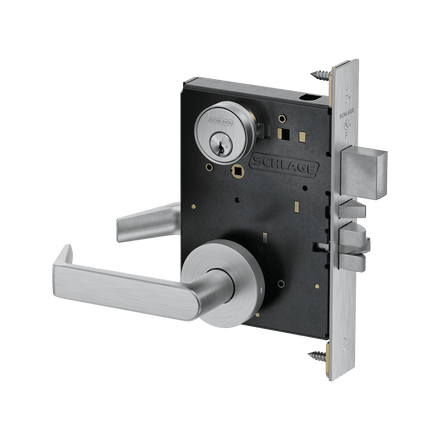

Schlage PM453 Entrance/Office Mortise Lock with Deadbolt, Rhodes (RHO) Lever

$528.43
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.13-2017 Series 1000, Grade-1
  • ANSI Function: F20 – Entrance/Office
  • ADA Compliant, Fire-Rated

Available Options:

Clear

Product Overview

Schlage PM453 Entrance/Office Mortise Lock with Deadbolt, Rhodes (RHO) Lever

Purpose-built to serve the commercial real estate, retail, multifamily, and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a competitive price point.

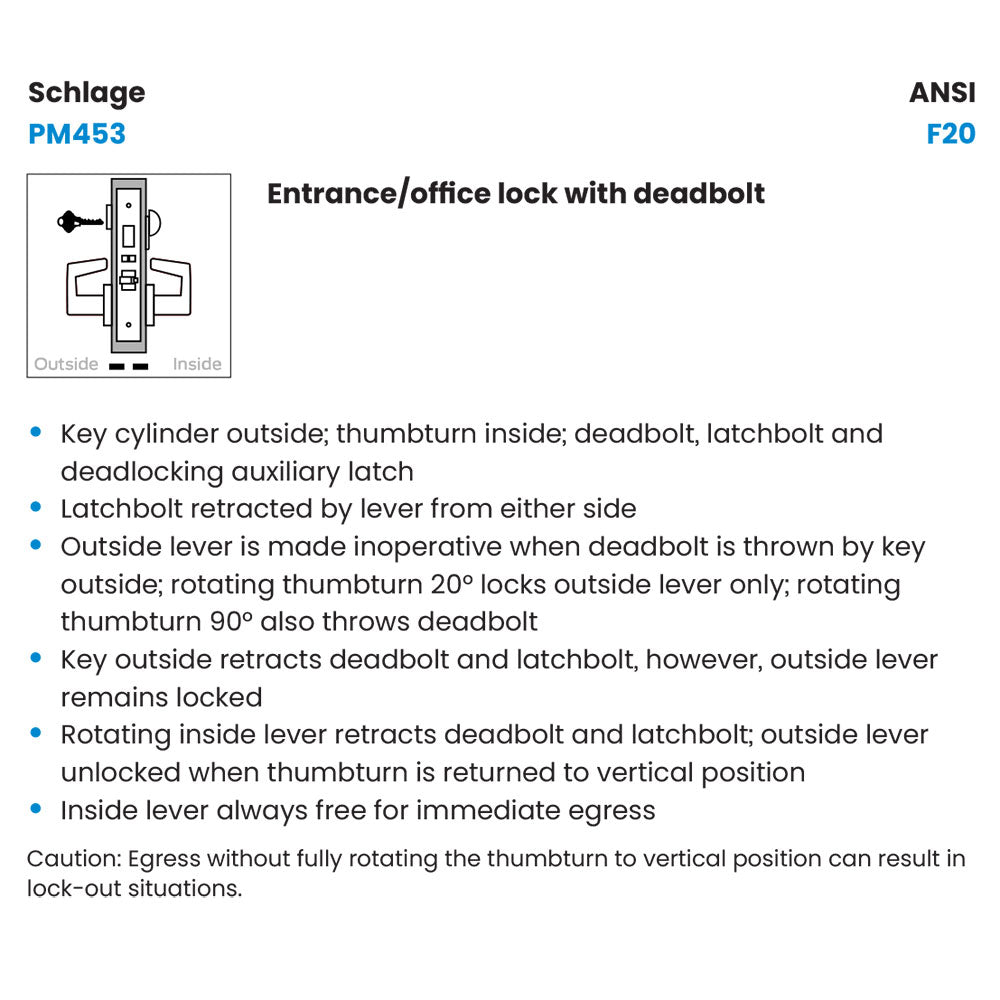

ANSI F20 – Entrance/Office – Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch • Latchbolt retracted by lever from either side • Outside lever is made inoperative when deadbolt is thrown by key outside; rotating thumbturn 20° locks outside lever only; rotating thumbturn 90° also throws deadbolt • Key outside retracts deadbolt and latchbolt, however, outside lever remains locked • Rotating inside lever retracts deadbolt and latchbolt; outside lever unlocked when thumbturn is returned to vertical position • Inside lever always free for immediate egress

  • ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security
  • UL 10C and CAN/ULC-S104 3-hour fire door
  • Meets ADA requirements

codes

Brand

Finishes

626 Satin Chrome, 622 Matte Black

Lock Function

Entry (Entrance), Office

ANSI Function

F20

Usage

Heavy Duty

Lever Design

RHO (Rhodes)

Trim

A Rose, C Rose, D Rose, N Full Face Escutcheon

ANSI Grade

ANSI A156.13, Series 1000, Operational Grade 1 and Security Grade 1

Fire-Rating

“A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Backset

2-3/4"

Strike

ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard

Handing

Field-reversible handing without opening lock case

Case

Steel case and parts are corrosion resistant

Case Size

4-7⁄16" x 6-1⁄16" x 1"

Armored Front

1-1/4" x 8" x 7/32" standard

Door Thickness

1-3/4"

Warranty

5 year limited mechanical warranty
