Schlage ND53JD RHO (Rhodes) FSIC Interchangeable Core Entrance Lever Lock

$526.68
This item ships FREE! Usually Ships:  1-2 Business Days
  • Extra Heavy Duty - ANSI Grade 1 Certified
  • Prepped for Interchangeable Core (FSIC Core Sold Separately)
  • ANSI Function F109, Entry

Available Options:

Clear

Product Overview

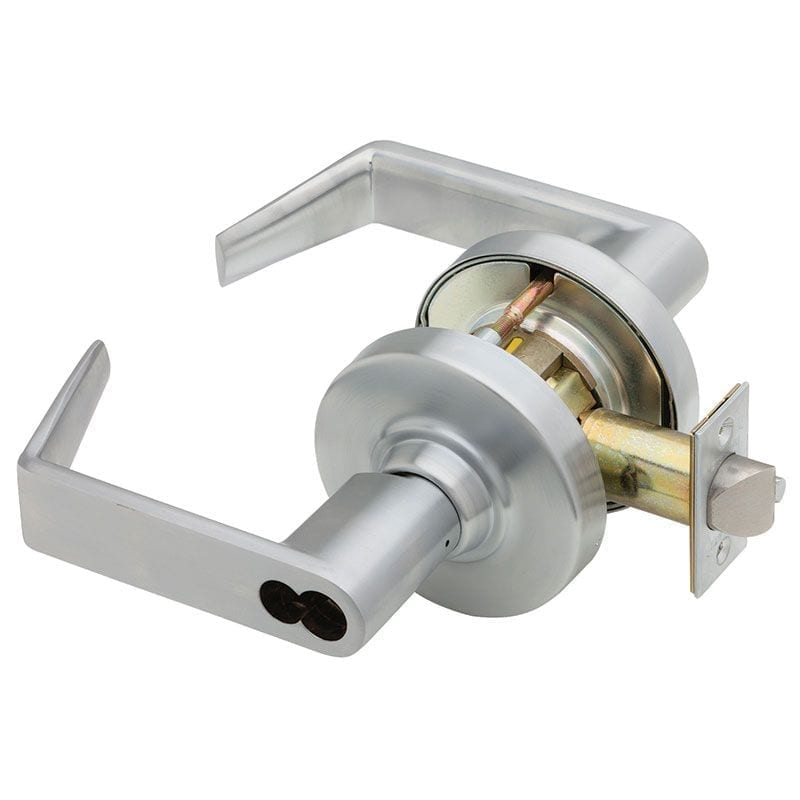

Schlage ND53JD RHO Grade-1 Cylindrical Lever Lock, Entrance Function, Rhodes Lever, Less Full Size Interchangeable Core

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

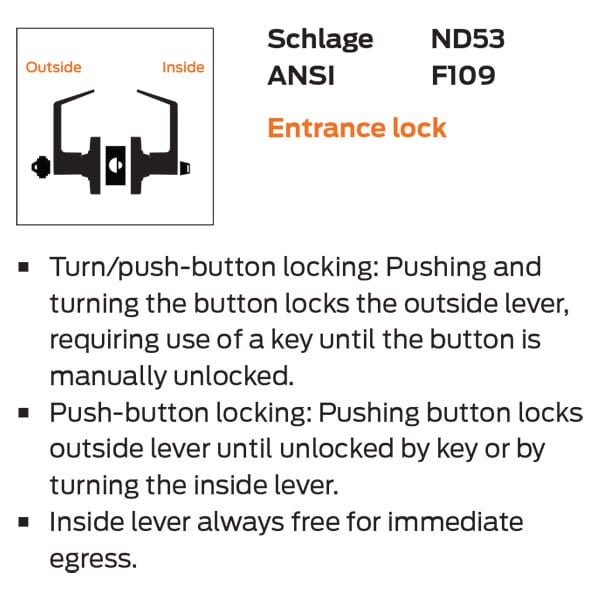

ANSI Function F109 - Turn/push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Push button locking. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever always free. Deadlocking latch bolt.

23-030 Full Size Interchangeable Core Sold Separately

Brand

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 622 Matte Black, 612 Satin Bronze, 613 Oil Rubbed Bronze, 625 Bright Chrome, 643e Aged Bronze, 619 Satin Nickel, 626AM Satin Chrome Antimicrobial

Lock Function

Entry (Entrance)

Lever Design

RHO (Rhodes)

Cylinder

Less Interchangeable Core

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Backset

2-3/4"

ANSI/BHMA Standard

Meets and Exceeds ANSI/BHMA A156.2, Series 4000, Grade 1

Usage

Heavy Duty

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

UL/cUL listed up to 3 Hours (A Label) - UL symbol on the latch front

Handing

Non-Handed

Door Thickness

1-3/4"
