Schlage

Schlage L463L Classroom Mortise Deadbolt Lock, Less Cylinder

$275.10
Usually Ships:  10-15 Business Days
  • Extra Heavy Duty, ANSI Grade-1 Certified
  • Classroom Deadbolt (Cylinder Sold Separately)
  • ANSI Function: E06091

Available Options:

Clear

Product Overview

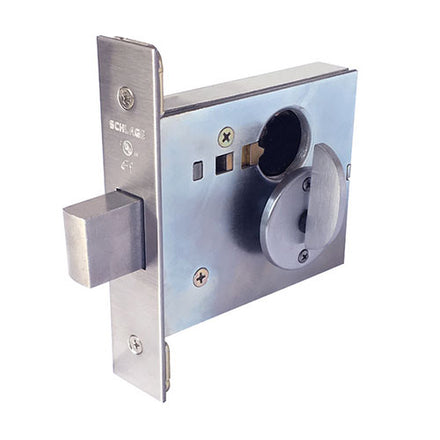

Schlage L463L Grade 1 Small Case Mortise Deadbolt, Cylinder x Thumbturn, Classroom Function, Less Cylinder, Satin Chrome

Nothing is tougher! L400 Series locks are designed for use as primary locks where no latching is required, such as restrooms and small doors to utility spaces. They also offer optimum security when used as auxiliary locks in other applications. Schlage L Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail.

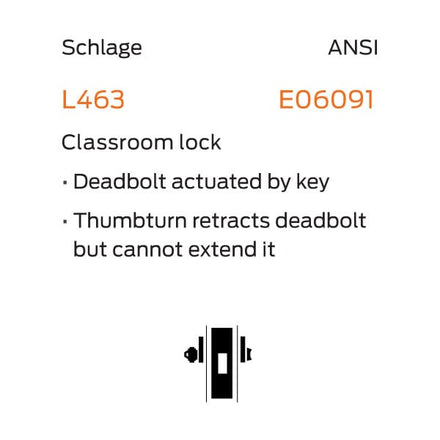

ANSI Function E06091 - Deadbolt thrown or retracted by key from outside. Inside thumbturn cylinder retracts deadbolt, but cannot project it.

  • 626 Satin Chrome Finish
  • Less Cylinder (mortise cylinder sold separately)
  • 1" stainless steel throw deadbolt
  • Anti-saw pin in bolt to prevent cut-through
  • Exceeds ANSI/BHMA Grade 1 standards
Brand

Finishes

626 Satin Chrome

Handing

Handed - LH, RH

Cylinder

Schlage 30-001 Mortise Cylinder (sold separately)

Certifications

ANSI 156.5, 1992, Grade 1. UL Listed.

Usage

Heavy Duty

Fire-Rating

UL Listed

Deadbolt

Stainless steel, 1” throw

Backset

2-3/4"

Strike

1 1/8" x 3 5/8" (29 mm x 92 mm), no lip furnished with dust box , standard.

Case Size

4 7/16" x 3 5/8" x 1"

Armored Front

1-1/4" x 5 19/32" x 7/32"

Door Thickness

1-3/4"
