Rockwood

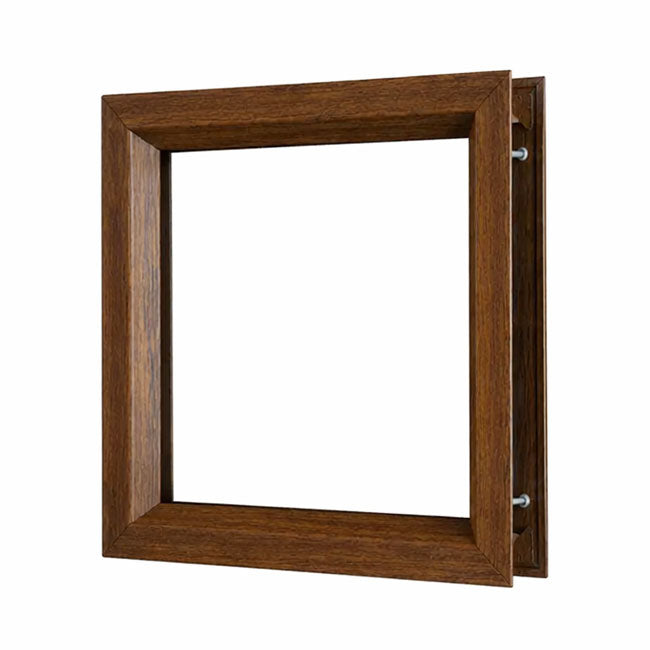

Rockwood LT-B1 OptiCoat Galvannealed Vision Lite Frame for 1/4" Glass, 1-3/4" Thick Door

$82.66
Usually Ships:  20-30 Business Days
  • 20-gauge galvannealed steel frame with OptiCoat sublimation finish
  • High-end finishes that mimic the natural beauty of wood or marble
  • For 1-3/4" thick door, 1/4″ thick glass (sold separately)

Available Options:

Clear

Product Overview

Rockwood LT-B1 Beveled Lite Kit Frame with 3/8" Glazing Pocket for 1/4" Glass - for 1-3/4" Thick Doors, Galvannealed Steel, OptiCoat Sublimation Finish

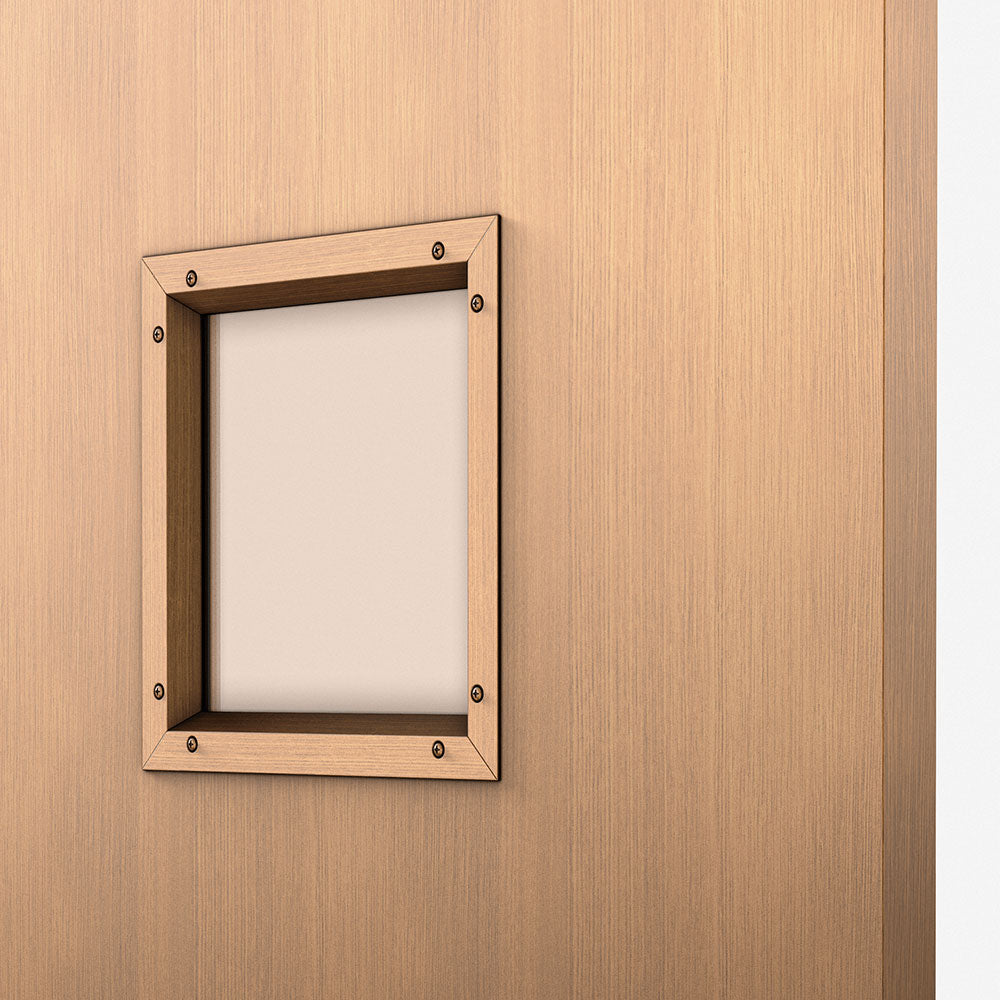

For use with glazing material with wood or metal doors. The lite kits install without drilling holes through the door for quick installation. The hemmed design is a flush-mounted assembly and is ideal for clean environments.

Rockwood's OptiCoat™ finishes transform ordinary metals into stunning, high-end finishes that replicate the elegance of natural wood and marble. Suitable for door pulls, lite kits, protection plates, and more, these new offerings deliver luxury that lasts.

OptiCoat™ sublimation finish technology is revolutionizing aesthetics by transforming ordinary metals into stunning, high-end finishes that mimic the natural beauty of wood or marble. Through an advanced sublimation process, OptiCoat infuses realistic textures and patterns into metal surfaces, creating finishes that are not only visually striking but also incredibly durable.

OptiCoat is ideal for elevating projects where every detail matters, including upscale hotels, offices, and multi-family spaces. With 13 readily available finish options, plus custom capabilities, matching opening hardware to the overall style of your facility has never been easier.

  • High-end finishes that mimic the natural beauty of wood or marble
  • 12 wood finishes and 1 marble finish offered
  • Not highly flammable like wood (made from steel)
  • High scratch resistance
  • High corrosion resistance
  • High UV resistance

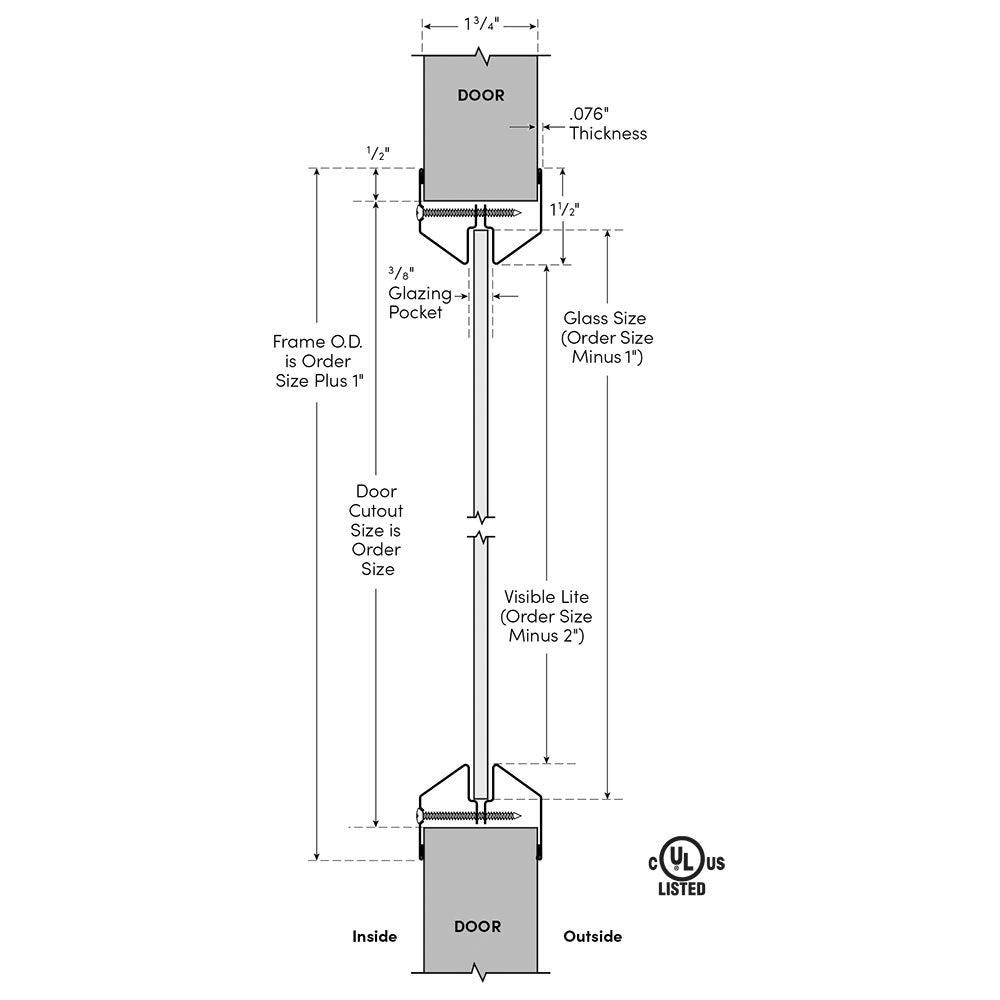

  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Glass / Glazing Tape Not Included - glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • Classified in accordance with UBC code standard 7-2 for positive pressure

OptiCoat vision lite frames are made to order and are non-returnable.

made-in-usa

Brand

Finishes

ACS - Auburn Cherry OptiCoat, AOS - Amber Oak OptiCoat, BCS - Burnt Sienna Cherry OptiCoat, BOS - Blonde Oak OptiCoat, CPS - Casselman Pine Opticoat, EWS - Espresso Walnut OptiCoat, MCS - Maple Cherry OptiCoat, SCS - Sunrise Cherry OptiCoat, SOS - Scarlett Oak OptiCoat, SPS - Somerset Pine OptiCoat, TOS - Tangerine Oak OptiCoat, TWS - Toasted Walnut OptiCoat, WMS - White Marble OptiCoat

Frame Profile

Low

Frame Construction

20 Gauge Galvannealed Steel

Frame Fasteners

#8 x 1-3/4" Phillips head SMS

Glass Thickness

1/4"

Fire-Rating

Classified in accordance with UBC code standard 7-2 for positive pressure, 90 Minute Fire Rating

Door Thickness

1-3/4"

Buy American Act Compliance

Meets Buy American Act - Made in USA
