Pemko

Pemko 2001_T Latching Panic Saddle Threshold with ThermoSeal Insert - 5" Wide x 1/2" High

$51.94
Usually Ships:  5-10 Business Days
  • 5"Wide x 1/2"High
  • ADA compliant and fire-rated
  • ThermoSeal insert helps with acoustic performance

Available Options:

Clear

Product Overview

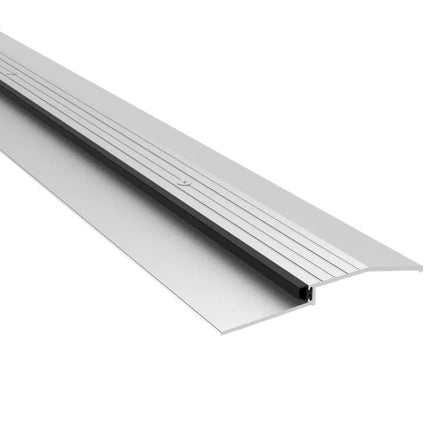

Pemko 2001_T Latching Panic Saddle Threshold with ThermoSeal Insert

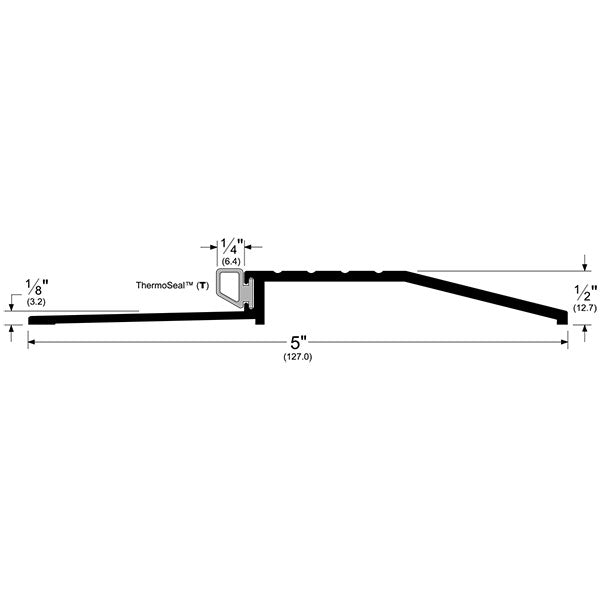

The 2001 Series Latching Panic Saddle Threshold has a 5" width and allows for a 1/4" door clearance for use on a low 1/4" to 3/8" undercut door. It's designed to protect against sound, air infiltration, wind, and debris and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal. It includes an integrated gasket ThermoSeal (T). This threshold is sound, air infiltration tested, and fire rated.

  • ThermoSeal insert helps with acoustic performance
  • Allow 1/4" door clearance
  • Supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
  • TYPE: Latching Panic Exit Threshold
  • MATERIAL:6063-T6 Aluminum Alloy and Temper Retainer
  • WIDTH: 5” (127.0 mm)
  • HEIGHT: 1/2” (12.7 mm)
  • LENGTHS: 36", 48", 72" and 96"

Finishes

  • 2001AT: A - Mill Finish Aluminum Aluminum with Black Thermo Seal insert
  • 2001BSPT: BSP - Black Suede Powder Coat with Black Thermo Seal insert
  • 2001DT: D - Dark Bronze Anodized Aluminum with Black Thermo Seal insert

Ratings

  • Air Infiltration Tested
  • Sound Tested - ASTM E90
  • Barrier-Free
  • BHMA Certified
  • Fire Rated - UL10C - Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified

Warranty Info

Guaranteed for five (5) years against defects in material or workmanship, except: Powder Coated finishes are warranted for two (2) years; normal wear is not included in coverage.

Brand

Finishes

BSP - Black Suede Powder Coat, A - Mill Finish Aluminum, D - Dark Bronze Anodized Aluminum

Length

36", 48", 72", 96"

Width

5"

Height

1/2"

ANSI/BHMA Standard

ANSI/BHMA A156.2

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Fire-Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
