McKinney

McKinney T4A3386 - 4.5" x 4.5" Heavy-Weight NRP Bearing Hinge (Non-Removable Pin)

$51.05
Usually Ships:  1-2 Business Days
  • NRP (Non-Removable Pin) - Set Screw in Barrel
  • .180 Heavy Weight
  • Five Knuckle, Template Hole Pattern

Product Overview

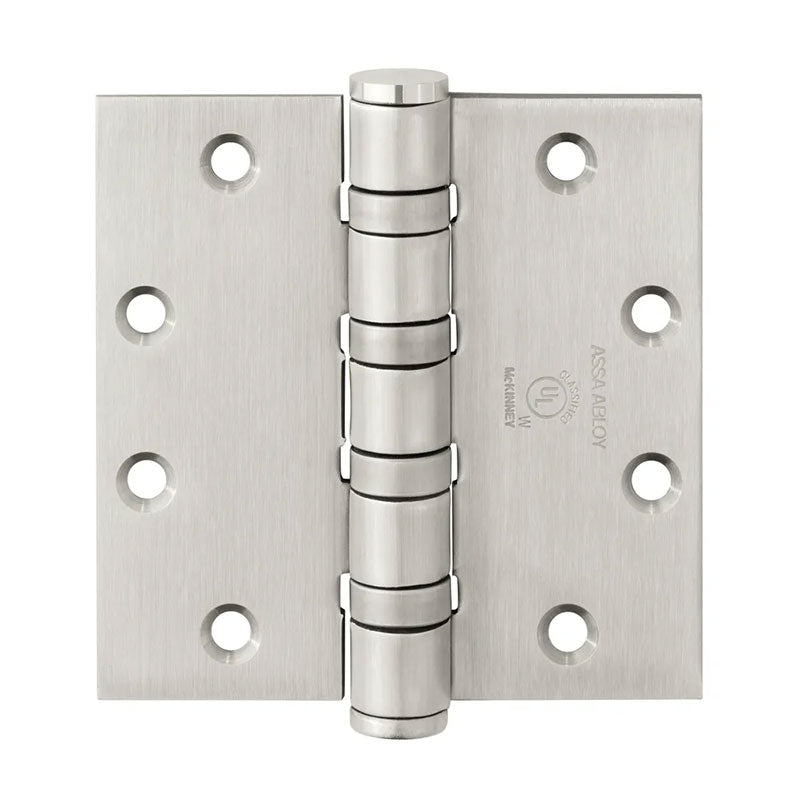

McKinney T4A3386 - 4-1/2" x 4-1/2" Heavy-Weight Bearing Hinge, Non-Removable Pin, Satin Stainless Steel Finish

The T4A3386 (stainless steel)  heavy weight five knuckle full mortise hinges are recommended for use on high frequency and/or heavy wood or metal doors in public buildings where there is heavy traffic.

Recommended for use on high frequency and/or heavy wood or metal doors in schools, hospitals, or other public buildings where heavy traffic is experienced.

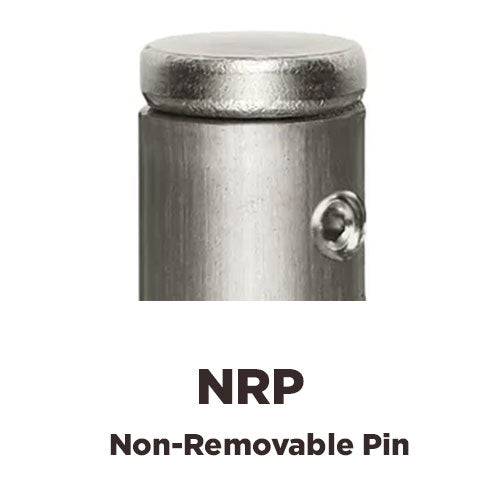

Non-Removable Pin also known as security hinges are used with outswinging doors with locking hardware. Typically found on exterior doors that swing outward. A set screw in the barrel prevents the removal of the hinge pin.

  • US32D/630 - Stainless Steel Finish
  • Heavy weight hinges should be used on all extra heavy doors or those exposed to high-frequency use
  • Packed with wood and metal screws
  • T4A3386- Stainless steel base
Brand

Finish

Stainless Steel

Finishes

630 Satin Stainless Steel

Hinge Type

Full Mortise

Size

4.5" x 4.5"

Knuckles

Five

Bearings

Oil Impregnated Bearing

Gauge

0 .180

ANSI/BHMA Standard

Meets ANSI/BHMA A156 .1

Fire-Rating

Certified to meet UL standards (3hr)

Usage

Heavy Duty
