McKinney MK80SS 3D Adjustable Concealed Invisible Hinge

$196.22
Usually Ships:  3-5 Business Days
  • For use with wood and hollow metal doors (1-3/8″ min. thickness)
  • Refined and minimal design
  • Features easy 3-Dimension adjustability
Added to Cart

Product Overview

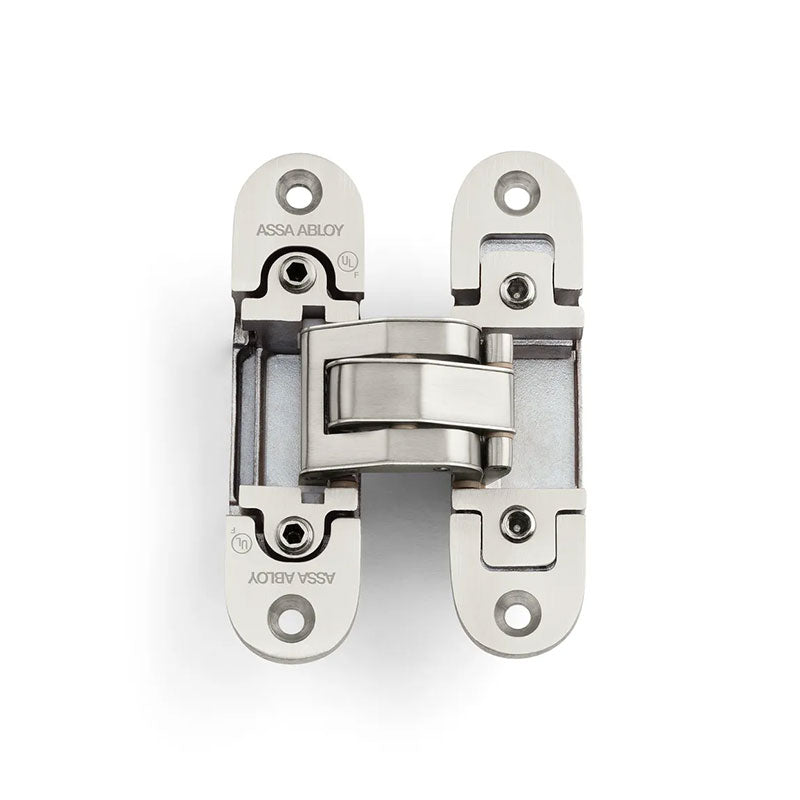

McKinney MK80SS 3D Adjustable Concealed Invisible Hinge, US32D Satin Stainless Steel

The MK80SS stainless steel, non-handed concealed hinge is coverless and used on wood or hollow metal doors that are at least 1-3/8" thick.

Refined and minimal, the McKinney Concealed Hinges feature 3-Dimension adjustability for easy installation and door alteration.

Features

  • For wood or hollow metal doors that are a minimum of 1-3/8" thick
  • No covers
  • 3-dimensional adjustability
  • Zinc alloy base material
  • 180° opening angle
  • UL Listed

Benefits

  • Virtually disappear from view when the door is closed
  • Provides aesthetic continuity when door is open
  • Refined and minimal
  • Easy installation and door alteration
  • Greater hinge capacity than the MK4001A

Specifications

  • Base material: Stainless Steel
  • Overall hinge length: 111.5mm (4.39”)
  • Hinge width: 29mm (1.14”)
  • Non-handed
  • Opening angle: 180 degrees
  • 3-Dimensional adjustability:
    - Vertical + /- 2 mm
    - Horizontal + /- 2 mm
    - Depth + /- 1 mm
  • For wood or hollow metal doors with wood or metal frames
  • UL Listed for both hollow metal or steel covered composite fire doors rated up to 3 hours
  • UL Listed for wood core fire doors rated 20 minutes

Cross Reference: Tectus 526 3D (SS), Soss 416-SS

Brand

Finish

Stainless Steel

Size

4-3/8" x 1-1/8"

Fasteners

Metal: M5 x 20 screws, Wood: 35mm PHWS
