McKinney

McKinney MK200 3D Adjustable Concealed Invisible Hinge

$188.96
Usually Ships:  3-5 Business Days
  • For use with wood and hollow metal doors (1-3/4″ min. thickness)
  • Refined and minimal design
  • Features easy 3-Dimension adjustability

Product Overview

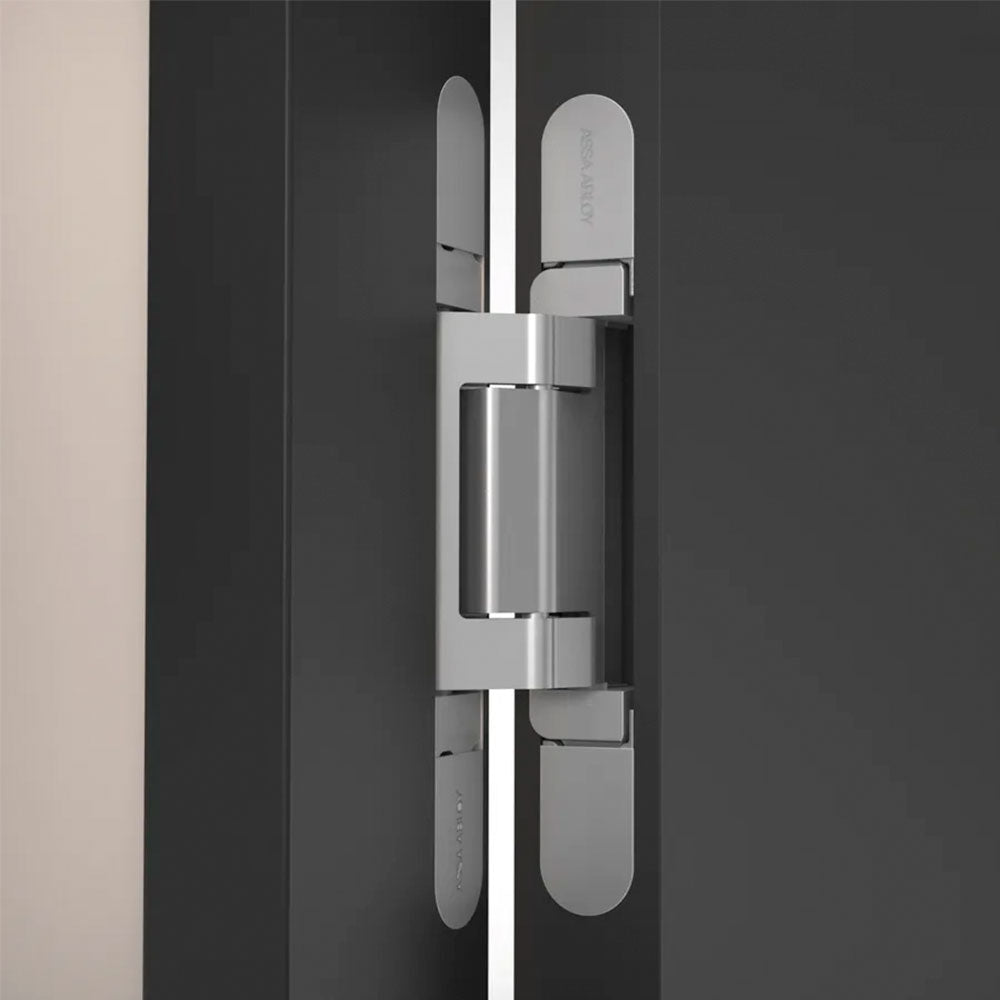

McKinney MK200 3D Adjustable Concealed Invisible Hinge, Satin Chrome Finish

The MK200 concealed hinge for wood or hollow metal doors with a 1-3/4" minimum thickness, are non-handed and include magnetic covers.

Refined and minimal, the McKinney Concealed Hinges feature 3-Dimension adjustability for easy installation and door alteration. The magnetic covers conceal screws for a clean aesthetic.

Features

  • For use on wood or hollow metal doors that are a minimum 1-3/4" thick
  • Covers included
  • 180° opening angle
  • 3-dimensional adjustability
  • Base Materials: Hinge body - zinc alloy, Hinge arms - aluminum, Hinge covers - steel

Benefits

  • Prevents tampering, increases security
  • Keeps door clean and minimal
  • No visible exposure on the outside of the opening
  • Magnetic covers conceal screws for a clean aesthetic
  • Easy installation and door alteration
  • Greater hinge capacity than all other McKinney concealed hinge models

Specifications

  • Model number: MK200 (Magnetic covers included)
  • Base material: Zinc alloy
  • Overall hinge length: 260 mm (10.24”)
  • Hinge width: 36mm (1.42”)
  • Non-handed
  • Opening angle: 180 degrees
  • 3-Dimensional adjustability:
    - Vertical +/- 3 mm
    - Horizontal +/- 3 mm
    - Depth +/- 1.5 mm
  • For wood or hollow metal doors with wood or metal frames

Cross Reference: Tectus 640 3D, Soss 220

Brand

Finish

Satin Chrome

Size

10-1/4" x 1-3/8"

Fasteners

Metal: M5 x 20 screws, Wood: 35mm PHWS

ANSI/BHMA Standard

ANSI/BHMA A156.1 Certified
