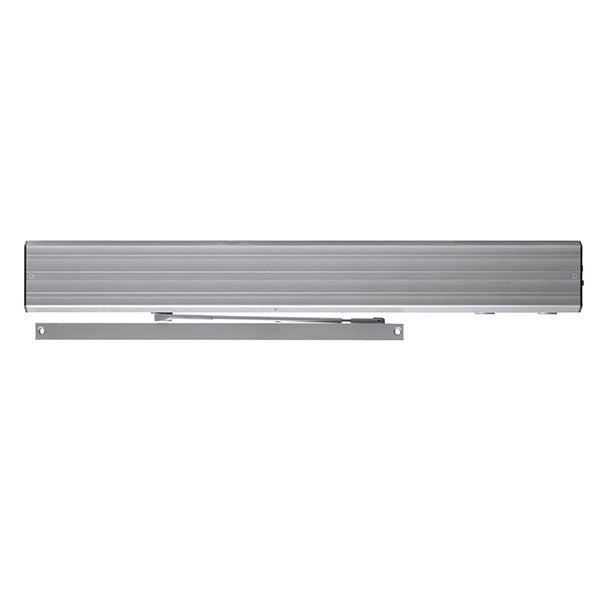

LCN 4631 Auto Equalizer Power Operator - Pull Side Mount

$4,711.60

Usually Ships: 3-5 Business Days

On-board power supply, Plug-and-play connections
Integrates a modified heavy-duty 4040XP Series cast iron cylinder
Non-handed, pull-side mount

Available Options:

Clear

Finish

Quantity:

Added to Cart

LCN 4631 STD Grade 1 Standard Arm Auto Equalizer Door Operator, Pull Side Mounting

The 4630 auto equalizer is LCN’s smart and reliable electrically powered low-energy automatic operator. It provides easy access for people with disabilities or the elderly. Designed primarily for manual opening applications that occasionally required automatic opening. They are backed by a 2-year limited warranty, are UL and cUL listed, meet ANSI/BHMA 156.19, meet the American Disabilities Act (ADA), and ANSI A117.1 requirements for accessibility.

Non-sized cylinders for interior doors to 4’6” and exterior doors to 3’6”
Non-handed design
Meets ADA requirements (power mode)

Brand	LCN
Finishes	689 Aluminum (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated), 693 Black (Powder Coated)
Usage	Heavy Duty
Certifications	Grade 1 - ANSI A117.1, A156.19, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction	Cast Iron Body, Full Complement Bearing, 1-1/2" Diameter Piston, 3/4" Diameter Double Heat Treated Pinion Journal
Fluid	All Weather Fluid
Handing	Non-Handed
Spring Size	Adjustable Spring Size 1-4
Mounting	Top jamb (Pull Side)
Arms	Standard single lever arm and track
Cover	Metal
Fasteners	Wood and Machine Screws
Warranty	2 Years
Buy American Act Compliance	Meets Buy American Act - Made in USA
