National Guard Products (NGP) 9750 Self-Adhesive NGP Edge Intumescent Smoke Seal, Charcoal

Intumescent with Flexible Elastomeric Bulb Fire and Smoke Seal

NGP-Edge® Sealing System/Smoke and Draft Control Gasketing Category “G” and “H” Classified
Self-Adhesive Intumescent
NGP Intumescent materials are formulated to expand at 375°F to 400°F up to 8-10 times their original thickness; completely sealing the gap around and between doors during a fire
Moisture resistant
Modified acrylic pressure sensitive adhesive protected by release liner
Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals
End use temperature range of adhesive, long term exposure -30°F up to 250°F
Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less
Rigid PVC base with flexible elastomeric bulb
Flame resistant
Temperature range -60°F to 275°F
REACH and RoHS compliant
20, 45, 60, 90 minute rated category B wood doors perimeter application up to: single swing 4'0 x 9'0, pairs 8'0 x 9'0
1/8" clearance required between door and frame

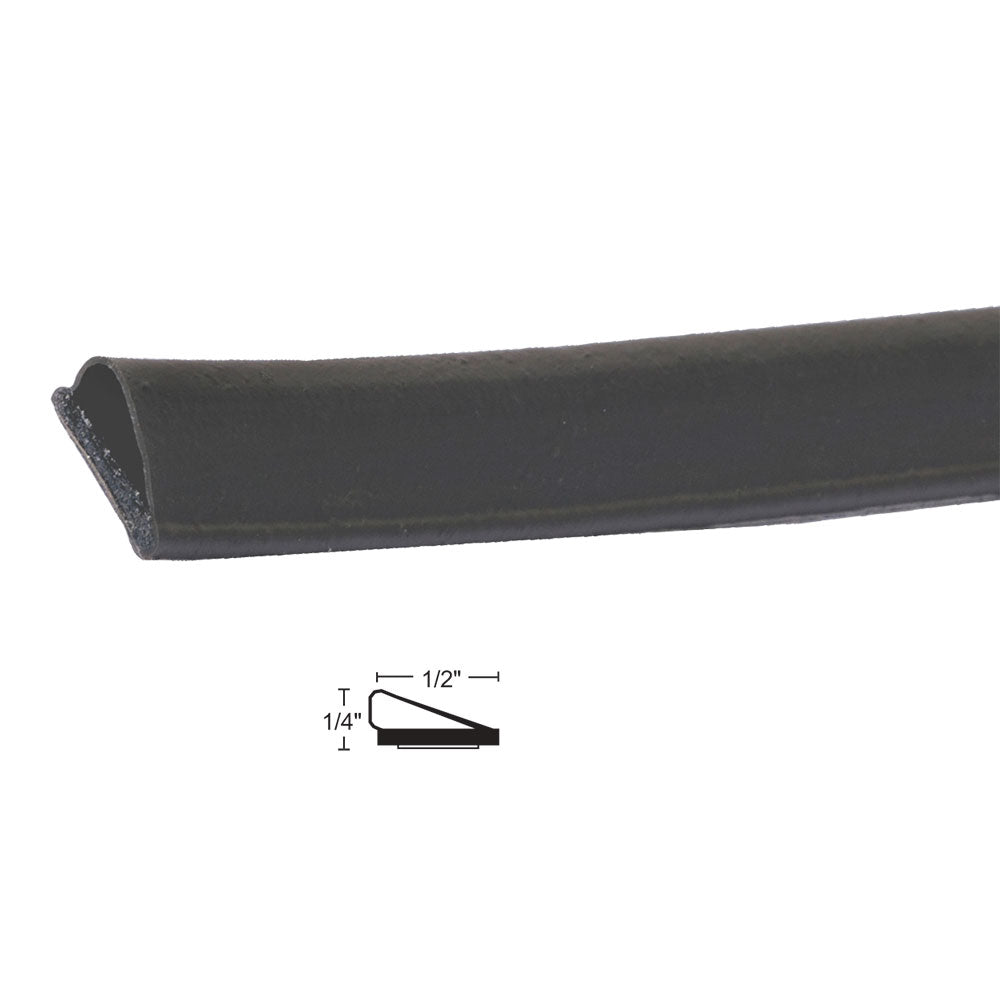

1/2" wide x 1/4" tall
Available in 36", 48", 84", 96 and 108" lengths
Charcoal

made-in-usa

Standards

Brand	NGP (National Guard)
Finishes	Charcoal
Roll Length	17' Roll, 20' Roll, 21' Roll, 25' Roll, 300' Roll
Fire-Rating	Fire rated-UL10c
Gasket Type	Adhesive-backed
Insert/Seal Type	Intumescent
Buy American Act Compliance	Meets Buy American Act - Made in USA
