NGP (National Guard)

NGP (National Guard) 5020 Self-Adhesive Silicone Batwing Smoke Seal

$43.87
Usually Ships:  3-5 Business Days
  • Seals against smoke, fire, air, sound and weather
  • Unaffected by sunlight, ozone and ultraviolet rays
  • Excellent compression; door latches easily

Available Options:

Clear

Product Overview

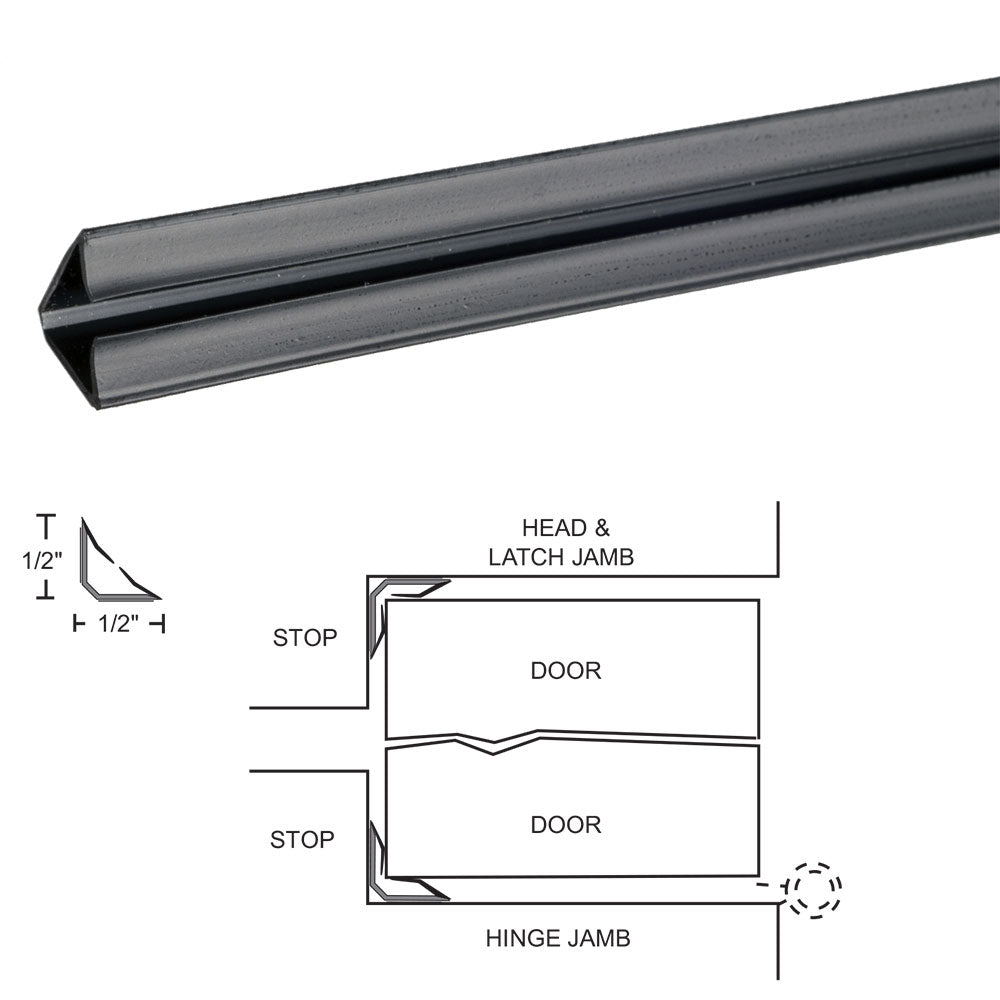

National Guard Products (NGP) 5020C Self-Adhesive Batwing Silicone Smoke Seal, Charcoal

Self-Adhesive Silicone Batwing Smoke Seal

  • Self-Adhesive Silicone Rubber
  • Good Abrasion Resistance
  • Moisture-Resistant
  • BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat, Cold, Adhesive and Energy Performance
  • Flame-Resistant
  • Reach and RoHS Compliant
  • Modified Acrylic Pressure Sensitive Adhesive Protected by Release Liner
  • Provides High Initial Adhesion and Long Term Holding Power for Permanent Mounting in Exterior or Interior Locations
  • Resistant to Aging, Weathering, UV Radiation, Water, Detergent, Alcohol and the Influence of Chemicals
  • End Use Temperature Range of Adhesive, Long Term Exposure -30°F Up To 250°F
  • Shelf Life of Adhesive Prior to Installation is One Year when Stored at 75°F and 50% Relative Humidity or Less
  • 1/2" Wide x 1/2" Tall

made-in-usa

Standards

  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C
  • ACOUSTICAL TESTED to ASTM E90
  • AIR INFILTRATION TESTED to ASTM E283
  • SMOKE & DRAFT CONTROL GASKETING
  • ANSI/BHMA CERTIFIED
Brand

Finishes

C - Charcoal, CL - Clear

Roll Length

17' Roll, 21' Roll, 25' Roll

Fire-Rating

Fire rated-UL10c

Gasket Type

Adhesive-backed

Insert/Seal Type

Silicone

Buy American Act Compliance

Meets Buy American Act - Made in USA
