Falcon F-25-V-EO Fire-Rated Surface Vertical Rod Exit Device

$896.35
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, Grade-1 ANSI Certified
  • ANSI Function 01, Exit Only (Trim Sold Separately)
  • UL Listed Fire Hardware, Fire-Rated up to 3 Hours

Available Options:

Clear

Product Overview

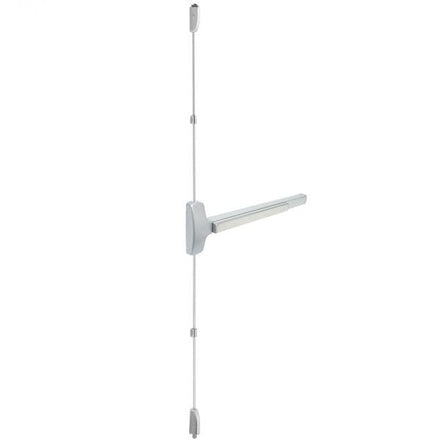

Falcon F-25-V-EO Surface Vertical Rod Exit Device, UL Listed, Fire-Rated, Exit Only

When your application requires strength and durability, plus fire-rated performance, the F-25-V Series is the total package. This surface-applied vertical rod device includes a sleek touch bar design with top latch and deadlocking standard. Offices, banks, assisted living facilities, retail stores, and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse.

  • EO = Exit Only, ANSI Function 01 (25 Series Outside Trim Sold Separately)
  • Deadlocking top latch standard
  • All mounting screws are concealed, sheet metal screws and machine screws standard
  • 2-3/4" maximum projection
  • Stock Sizes: 3' x 7' and 4' x 7' - Cut to size in field
  • UL Listed fire hardware - “A” Label (3 hr) – 8' x 10' Double Egress; 90 min. Same Egress – 8' x 10' Wood Door: 20 Min. 8' x 10'; 90 Min. 8' x 9'

Brand

Finishes

US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel, US19 Flat Black, US26 (625) Bright Chrome, US3 (605) Bright Brass, 313AN Anodized Dark Bronze, US10 (612) Satin Bronze, US4 (606) Satin Brass, US15 (619) Satin Nickel

Length

3'0" (2'8" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Handing

Easily Re-handed in the field – Shipped as RHR

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire-Rating

“A” Label (3 hr) – 8' x 10' Double Egress; 90 min. Same Egress – 8' x 10' Wood Door: 20 Min. 8' x 10'; 90 Min. 8' x 9'

Vertical Rods

Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (extension rod available for doors up to 10'0")

Strikes

3788 Top Strike is Surface Applied - 2130 Bottom Strike is Mortised into Floor

Latchbolt

Top Stainless Steel 3/4" throw. Bottom Bolt, 1/2" Throw

Dogging Feature

None

Projections

2-3/4"

Device Type

Surface Rod Device

Stile Type

Wide (Standard)

Minimum Stile Width

3-1/2"

Door Applications

1-3/4″ Thick Metal or Wood Doors

Buy American Act Compliance

Meets Buy American Act - Made in USA
