Product Overview

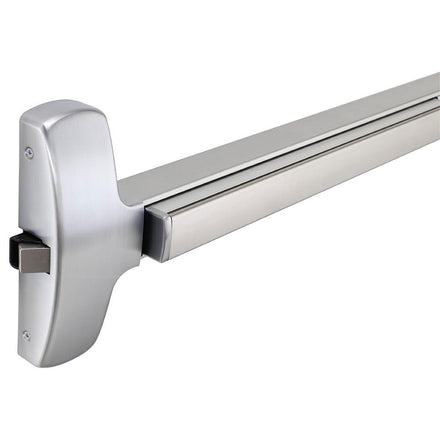

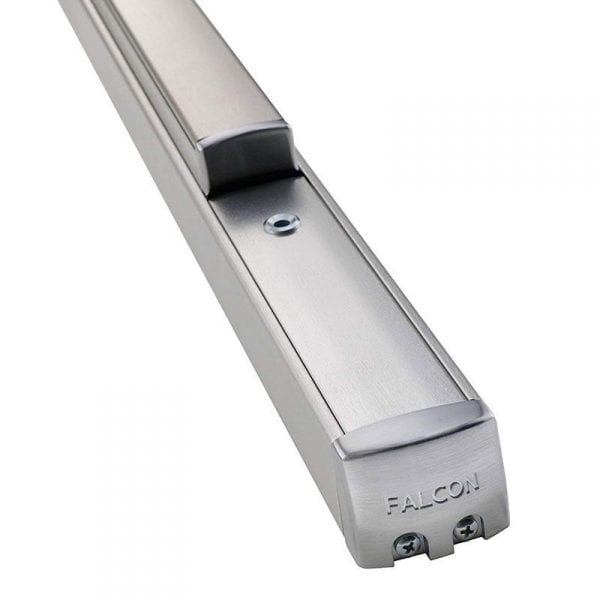

Falcon 25-R-EO Heavy Duty Touch Bar Rim Exit Device, Exit Only, Panic Rated
The perfectly simple, tougher than nails, costs less than you think, fits anywhere rim exit device
Offices, banks, assisted living facilities, retail stores, and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse.

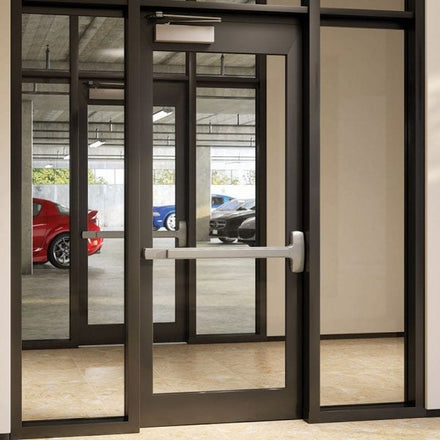

No exposed screws or rivets on the back of the device for a streamlined design and clean lines - when installed on full glass doors. The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch, and a streamlined touch bar design.
- EO = Exit Only, ANSI Function 01 (25 Series Outside Trim sold separately)
- For use with single doors and double doors with a mullion
- Stock Sizes: 3' and 4' - Cut to size in the field
- Deadlocking latchbolt standard
- Formerly known as Monarch 25R
| Brand | |
|---|---|
| Finishes |
619 Satin Nickel, US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel, US28 (628) Anodized Aluminum, US19 Flat Black, US26 (625) Bright Chrome, US3 (605) Bright Brass, 313AN Anodized Dark Bronze, US10 (612) Satin Bronze, US4 (606) Satin Brass |
| ANSI Grade |
Certified ANSI A156.3-2001 Grade 1 standards |
| Usage |
Heavy Duty |
| Fire-Rating |
None |
| Hand |
Non-handed |
| Strike |
299 roller strike standard |
| Latchbolt |
Stainless steel, 3/4" throw - Deadlocking |
| Stile Type |
Wide (Standard) |
| Minimum Stile Width |
4" w/ Standard Roller Strike |
| Dogging Feature |
Half turn hex dogging standard |
| Projections |
2-3/4" maximum, 2" dogged |
| Fasteners |
All mounting screws are concealed, sheet metal screws and machine screws standard |
| Center Case & Working Parts |
Center case is heavy wrought and sintered metal parts |
| Door Applications |
1-3/4″ Thick Metal or Wood Doors |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
