Falcon

Falcon 25-M-EO Mortise Exit Device, Exit Only

$888.32
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI Grade-1 certified
  • For use with metal or wood doors

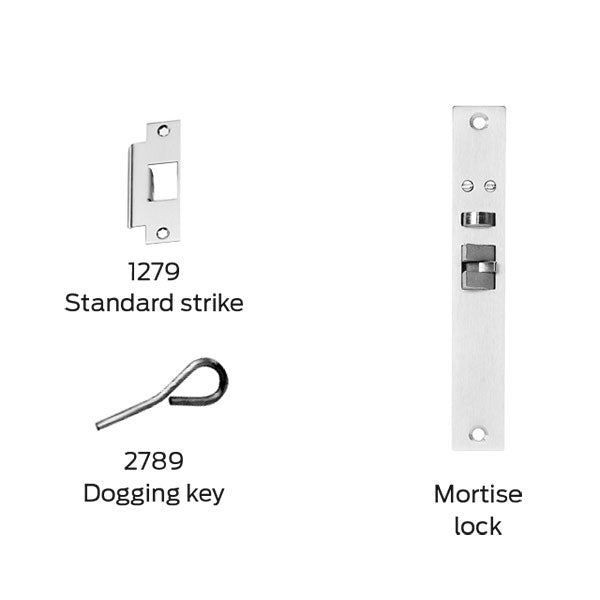

  • Includes mortise body and strike (trim sold separately)

Available Options:

Clear

Product Overview

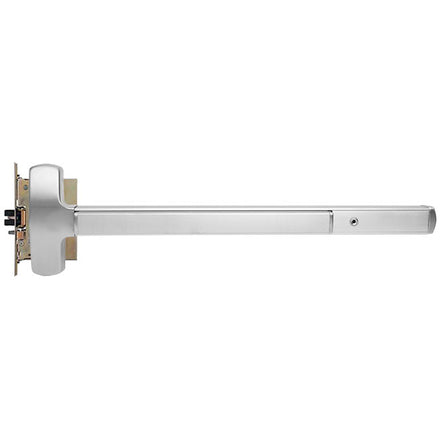

Falcon 25-M-EO Heavy Duty Grade-1 Mortise Lock Exit Device, Exit Only

The Falcon 25-M Series device pairs a tough, reliable exit device with a strong mortise lock. The result is maximum safety and security in a single-point, mortise latch type device that also has an attractive touch bar design.

  • Exit Only (trim sold separately)
  • Deadlocking Latchbolt Standard
  • 1279 Strike Standard
  • All mounting screws are concealed
  • Sheet metal screws and machine screws standard
  • 2-3/4" maximum projection, 2" dogged

Mortise Lock: Heavy wrought lock case with investment cast or sintered steel parts. Lock face is forged brass—fits standard cutout. Locks are designed to fit standard ANSI A115.1 preparation for 1-3/4" thick doors. Deadlocked when auxiliary bolt is depressed 5/16"

Brand

Finishes

US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel, 313AN Anodized Dark Bronze, US19 (315) Flat Black

Usage

Heavy Duty

ANSI/BHMA Standard

Certified ANSI A156.3-2001 grade 1 standards

Handing

Handed (LHR - Left Hand Reverse or RHR - Right Hand Reverse)

Fire-Rating

None

Includes Trim

No

Latchbolt

Stainless steel, 3⁄4" throw

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

1279 standard

Door Thickness

1-3/4"

Stile

4-1/2 " minimum

Buy American Act Compliance

Meets Buy American Act - Made in USA

Warranty

10 Years
