Falcon

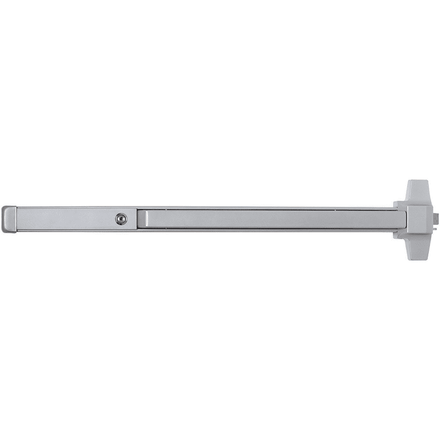

Falcon 20-R-EO Rim Panic Bar Exit Device

$153.28
Usually Ships:  1-2 Business Days
  • Standard Duty, ANSI Grade-1 Certified
  • For use with metal or wood doors
  • Exit only, outside trim sold separately

Available Options:

Clear

Product Overview

Faclon 20-R Grade-1 Panic Rim Exit Device, Exit Only

Falcon® prides itself on dependable, cost-effective products that meet or exceed life safety and building requirements. The Falcon 20 Series, pushbar exit devices are ideal for light-to-medium duty door applications, such as commercial, multi-family, office, and retail. This Grade-1, affordable exit device is offered in multiple functions, lever, and trim options. With the Falcon 20 Series, you’re choosing a quality performing, medium duty pushbar exit device with all metal construction at an unmatched value.

The Falcon 20 Series exit device is an affordable and reliable choice. A certified ANSI/BHMA A156.3-2014 Grade-1 exit device these pushbars are non-handed and will accommodate 161 door prep. The series also offers multiple functions and a full trim complement, including 161 key in lever.

  • EO = Exit Only (outside trim sold separately)
  • Durable, steel mechanism case construction
  • Standard features include scratch-resistant surfaces and built-in deadlocking
  • Roller strike standard
  • 3-1/2" minimum stile width
Brand

Finishes

US32D (630) Satin Stainless Steel, 689 Aluminum (Powder Coated)

Usage

Light Duty

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Stile Type

Wide (Standard)

ANSI Grade

Certified ANSI/BHMA A156.3-2014 Grade 1

Fire-Rating

Non Rated

Hand

Non-handed

Dogging Feature

Half turn hex dogging standard

Latchbolt

Stainless steel, 3/4" throw - Deadlocking

Strikes

Roller Strike

Fasteners

Universal hardware pack for wood and hollow metal

Door Applications

1-3/4″ Thick Hollow Metal Doors / Wood Doors
