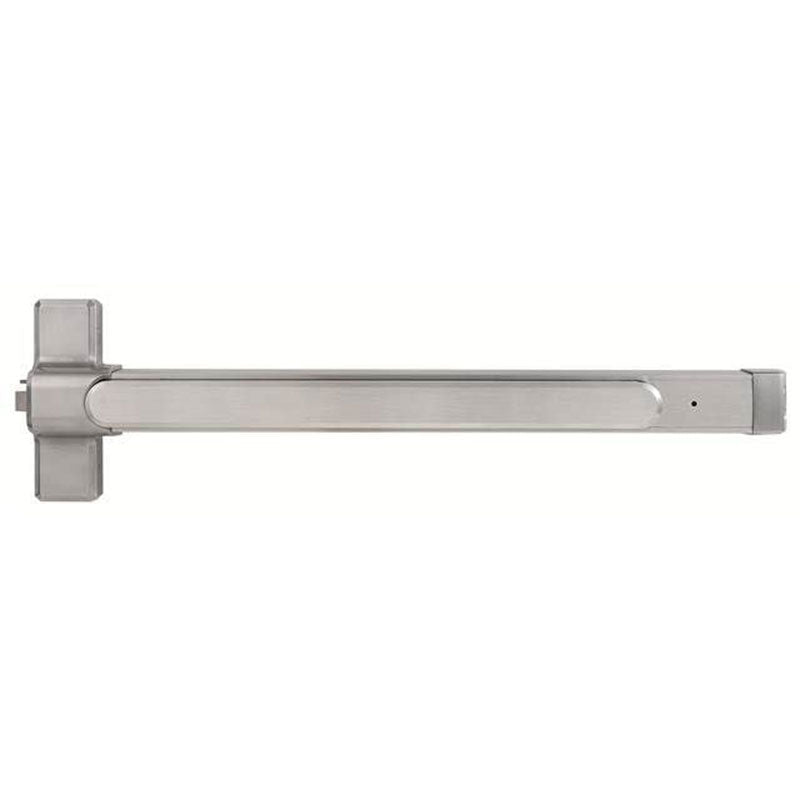

Dormakaba QED111 Panic Rim Exit Device

$700.77
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA A156.3 Grade 1
  • ANSI function 01, exit only (trim sold separately)
  • UL Listed for panic exit hardware

Available Options:

Clear

Product Overview

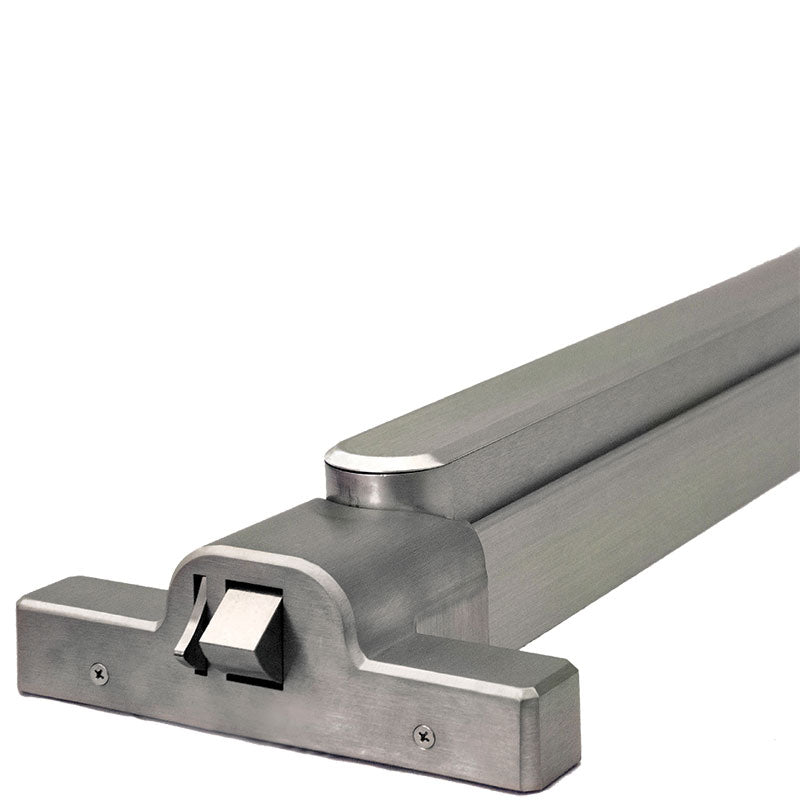

Dormakaba (formerly Stanley) QED111 Grade 1 Rim Exit Device, Wide Stile Pushpad, Hex Dogging, Exit Only

dormakaba’s Commercial Hardware QED100 Series exit devices are designed to accommodate the widest range of uses. The QED100 series is BHMA/ANSI Grade 1 certified, and significantly exceeds performance requirements. The QED100 series comes non-handed and field reversible.

  • Exit Only (Exit Device Trim sold separately)
  • UL Listed for Panic Exit Hardware
  • ANSI/BHMA A156.3 Series—Grade 1
  • ANSI A117.1 Section 404.2.6 Accessibility Code (ADA compliant)
  • Standard door thickness: 1-3/4"
  • Rim stile width: 4-1/4" (108mm) minimum
Brand

Finishes

626 Satin Chrome, 313AN Anodized Dark Bronze

Length

36" (32" to 36" Door Width), 48" (36" to 48" Door Width)

Usage

Heavy Duty

ANSI/BHMA Standard

ANSI/BHMA A156.3 Series—Grade 1

Fire-Rating

Non-Fire-Rated

Stile Type

Wide (Standard)

Minimum Stile Width

4-1/2"

Door Thickness

1-3/4"

Strike

8Q00254

Dogging Feature

Half turn hex dogging standard

Warranty

Lifetime Mechanical Warranty | 3 Year Finish Warranty
