Detex

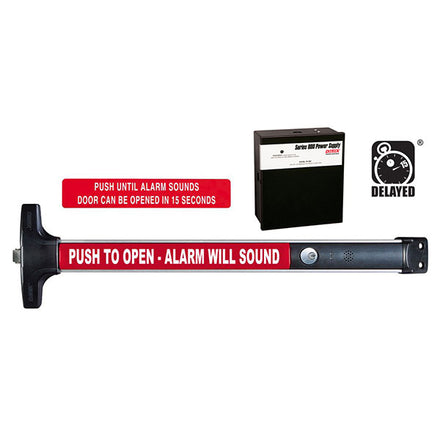

Detex V40 EE Delayed Egress Alarmed Rim Exit Device, Includes 24VDC Power Supply

$1,635.20
This item ships FREE! Usually Ships:  1-2 Business Days
  • 100db alarm - Powered by a 24VDC filtered and regulated power supply
  • Stainless steel, 3/4" deadlocking pullman-type latch bolt
  • Mortise cylinder (sold separately) provides arming and dogging

Available Options:

Clear

Product Overview

Detex V40 EE Value Series Wide Stile Rim Exit Device, Cylinder Dogging, 15 Second Delayed Egress

The EE, designed for primary and secondary exits, provides a secure 15-second delay and a 100 decibel alarm when someone attempts to exit. This 15-second delay allows management time to respond before someone exits and the alarm deters the exit from occurring. Per life safety requirements, the EE must be provided with a fire alarm input, thus providing a system override during a fire emergency. The EE provides security while meeting all life safety concerns, offering an exceptional value.

  • Priced to be the best value for durable and attractive panic hardware
  • Tamper resistant housing
  • Angled end cap deflects damage away from device
  • Controls foot traffic, deters unauthorized exits, prevents loss and meets building code requirements
  • Single mortise cylinder (sold separately) provides arming and dogging
  • Powered by a 24VDC filtered and regulated power supply
  • Fire alarm input can be connected at power supply
  • Power supply included
Brand

Finish

Anodized Aluminum, Black

Length

36", 48"

ANSI/BHMA Standard

ANSI/BHMA certified A156.3

Fire-Rating

Non-Fire-Rated

Latchbolt

3/4" throw

Power

Powered by a 24VDC filtered and regulated power supply

Dogging Feature

Cylinder Dogging (Requires 1-1/4" Mortise Cylinder Sold Separately)

Cylinder

1-1/4" Mortise Cylinder (sold separately)

Handing

Non-Handed

Door Thickness

1-3/4" to 2-1/4"
