Product Overview

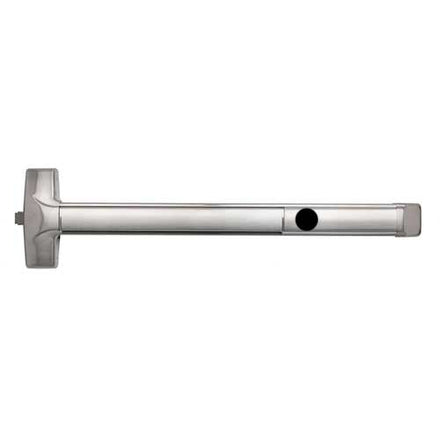

Detex Advantex 10 Series Wide Stile Rim Exit Device, 10 CD 630 99, Cylinder Dogging, 99 Surface Strike, 630/US32D Brushed Stainless Steel Finish
The 10 Series rim exit device is super-heavy-duty panic rim exit device for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
- Exit Only (trim sold separately)
- Cylinder dogging (cylinder sold separately)
- Tough and durable design for years of trouble-free service in high-use, high-abuse environments
- Patented mounting plate and strike locator system replaces paper templates
- Heavy duty angled end cap deflects damage away from device
- All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
- Tested beyond 1,000,000 cycles – Twice the cycling required for Grade 1 UL testing
- Stainless steel deadlocking, Pullman-type latch bolt
- Non-handed
- Field sizeable
| Brand | |
|---|---|
| Finishes |
630 Satin Stainless Steel |
| ANSI/BHMA Standard |
ANSI/BHMA certified A156.3 |
| Usage |
Heavy Duty |
| Fire-Rating |
Non-Fire-Rated |
| Latchbolt |
Stainless steel deadlocking, Pullman-type latch bolt |
| Strike |
99 strike standard |
| Handing |
Non-Handed |
| Stile Type |
Wide (Standard) |
| Minimum Stile Width |
4-5/8” with standard 99 strike |
| Dogging Feature |
CD - Cylinder Dogging (less cylinder) |
| Door Thickness |
1-3/4" to 2-1/4" |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
