Design Hardware F1000R Fire-Rated Rim Exit Device

$421.60

This item ships FREE! Usually Ships: 1-2 Business Days

Heavy Duty, ANSI A156.3 Grade 1 standards
For use with metal and wood doors
UL listed, 3-hour fire-rated

Available Options:

Clear

Finish
Length

Quantity:

Added to Cart

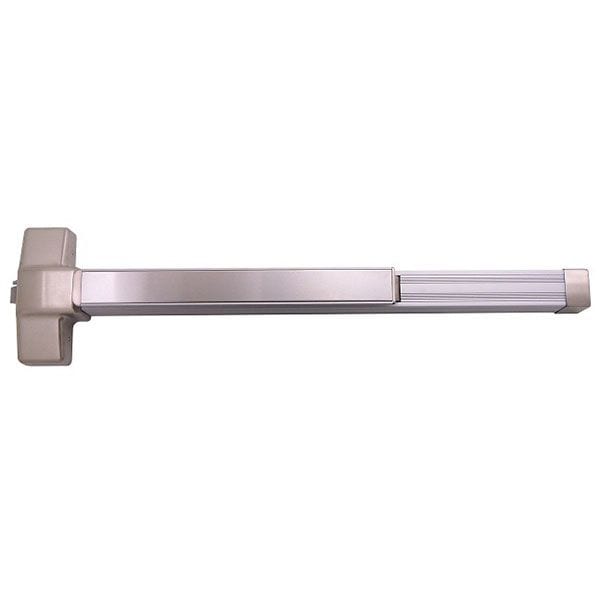

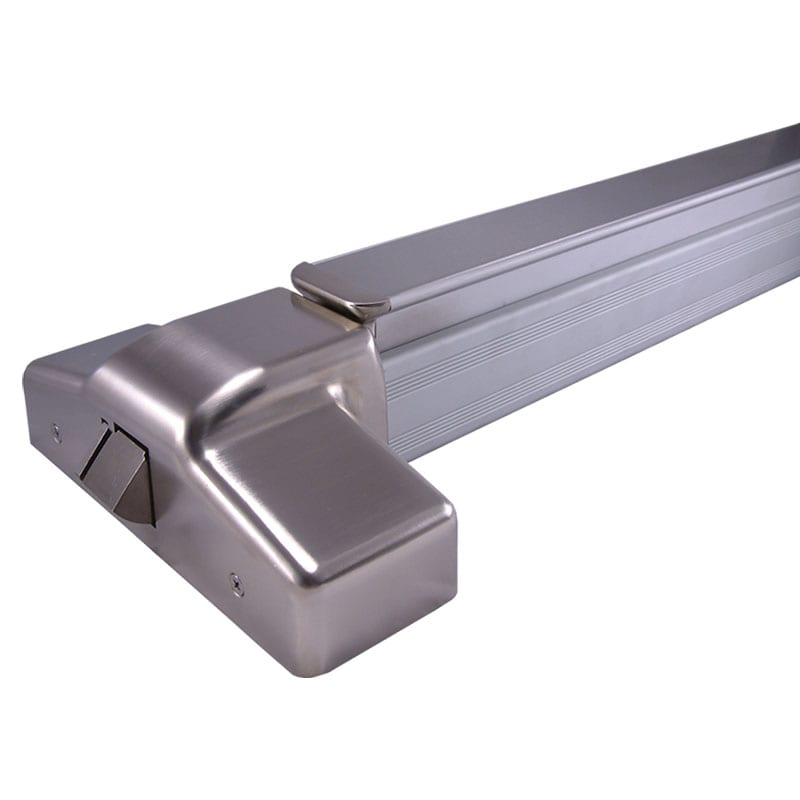

Design Hardware F1000R Grade-1 Fire-Rated Rim Exit Device, UL Listed, Exit Only

The F1000 fire-rated exit device meets ANSI A156.3-Grade 1 Standards and complies with the ADA American Disabilities Act - providing you with durability, toughness, and safety. Design Hardware products all meet or exceed industry standards and can be substituted for any other specified brand.

Exit Only (Outside Trim Sold Separately)
Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
Center Case Dim: 8″ Height x 2-7/8″ Wide x 2-13/16″ Thick – 4-1/2″ Minimum stile required
Mechanism Case Dim: 2-3/16″ Height x 2-3/16″ Wide

Brand	Design Hardware
Finishes	US10B (613) Oil Rubbed Bronze, 316SS-US32D Marine Grade Satin Stainless Steel, US32D (630) Satin Stainless Steel, US4 (606) Satin Brass, US3 (605) Bright Brass, US26 (625) Bright Chrome
Length	33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")
Trim	None - Exit Only (Outside Trim Sold Separately)
Construction	Heavy Duty Extruded Anodized Aluminum Channel & Steel Chassis
ANSI Grade	Meets & Exceeds ANSI A156.3 – Grade 1 Standards
Usage	Heavy Duty
Fire-Rating	3 Hour UL Listed
ADA Compliance	Meets ADA requirements ANSI A117.1 with Lever Trim
Handing	Non Handed – Completely Reversible
Dogging Feature	None
Latchbolt	Deadlocking latchbolt with 5/8″ projection
Strike	Roller Strike with 5/8″ projection & 1/8″ shim
Stile Type	Wide (Standard)
Projections	3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Fasteners	Wood, Machine & Self Tapping Machine Screws
