Product Overview

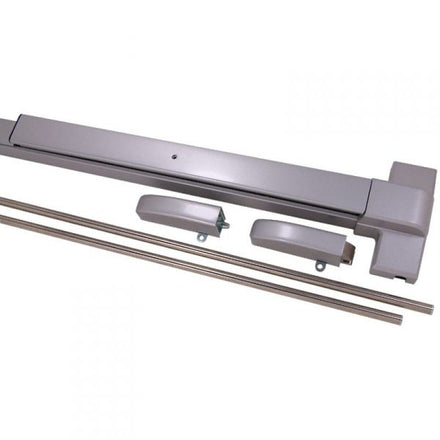

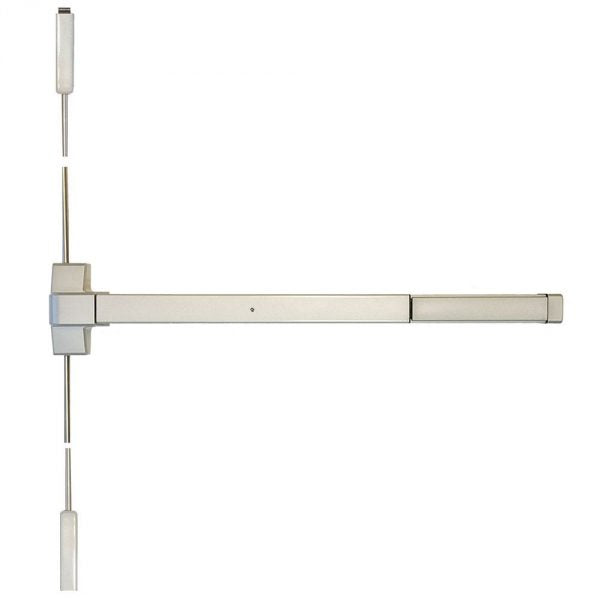

Design Hardware 2000V Grade-1 Surface Vertical Rod Exit Device, 7ft Height Door
The 2000V is an economical exit device option that is competitively priced to keep your project on budget. The 2000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act providing you with durability, toughness, and safety. Design Hardware products meet or exceed industry standards and can be substituted for any other specified brand.
- Exit Only (Outside Trim Sold Separately)
- UL Listing: UL Listed for Panic Exit Hardware
- Center Case Dim.: 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick – 4″ Minimum stile required
- Mechanism Case Dim.: 1-5/8″ Height x 1-13/16″ Wide
- Top Latch: U Shaped Top Latch for Secure Engagement with strike
- Bottom Latch: Drop Bolt Style Bottom Latch Secures into flat strike & hole in the floor
| Brand | |
|---|---|
| Finishes |
AL Aluminum Powder Coat, BZ Dark Bronze Powder Coat, US32D (630) Satin Stainless Steel |
| Length |
33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0") |
| Door Height |
7'0" Standard – Extended top rods available for up to 10'0" tall doors |
| ANSI Grade |
Meets ANSI A156.3 – Grade 1 Standards |
| Usage |
Medium Duty |
| Trim |
None - Exit Only (Outside Trim Sold Separately) |
| Fire-Rating |
None |
| ADA Compliance |
Meets ADA requirements ANSI A117.1 with Lever Trim |
| Handing |
Easily Re-handed in the field – Shipped as RHR |
| Dogging Feature |
Half turn hex dogging standard |
| Fasteners |
Wood, Machine & Self Tapping Machine Screws |
| Stile Type |
Wide (Standard) |
| Projections |
2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed) |
| Device Type |
Surface Rod Device |
