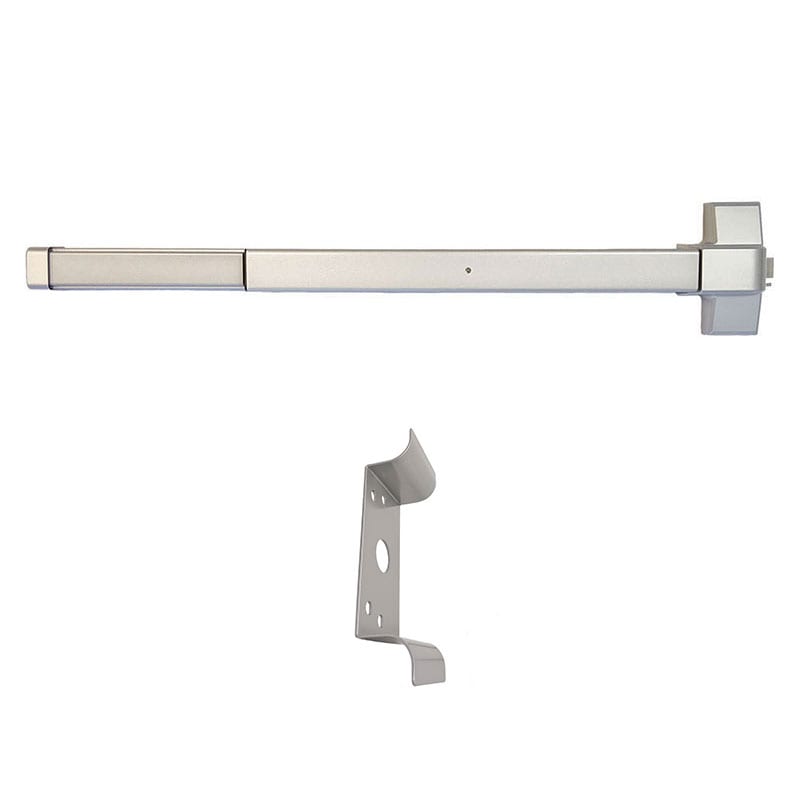

Design Hardware 2000R x DFP-03NL Rim Exit Device with Nightlatch Pull

$176.00
Usually Ships:  1-2 Business Days
  • Meets ANSI A156.3 – Grade-1 Standards
  • For use w/ Metal or Wood Doors
  • 2000R with DFP-03NL Nightlatch Pull (Key Retracts Latchbolt)

Available Options:

Clear

Product Overview

The 2000R is an economical exit device option that is competitively priced to keep your project on budget. The 2000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act providing you with durability, toughness, and safety. Design Hardware products meet or exceed industry standards and can be substituted for any other specified brand.

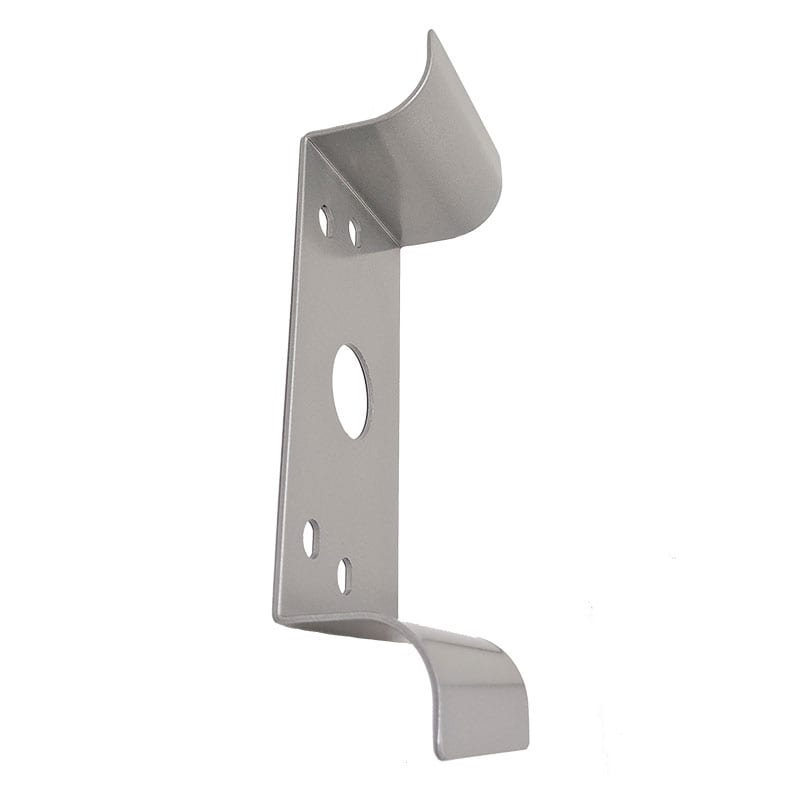

DFP-03NL: Economical pull trim option for 2000R. Will cover 161 prep on door. Thru-bolted design thru bolts to head of exit device.

  • Includes DFP-03NL Nightlatch Pull (Key Retracts Latchbolt) - Less Rim Cylinder
  • Includes cylinder sleeve for installation into 161 door prep
  • UL Listing: UL Listed for Panic Exit Hardware
  • (Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Center Case Dim.: 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick – 4″ Minimum stile required
  • Mechanism Case Dim.: 1-5/8″ Height x 1-13/16″ Wide
Brand

Model

2000R w/ Dogging Feature, F2000R - 3 Hour Fire-Rated Device (No Dogging)

Length

33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")

Trim

DFP-03NL (Nightlatch Pull)

Cylinder

1-1/8" Rim Cylinder (Sold Separately)

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards

Usage

Medium Duty

Fire-Rating

2000R Non-Rated - F2000R 3 Hour UL Listed

Handing

Non Handed – Completely Reversible

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Latchbolt

Deadlatching, 5/8" throw

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)

Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)

2000R-Installation-Instructions F2000R-Installation-Instructions 2000-DFP-Pull-Installation-Standard 2000-DFP-Pull-Installation-161-Prep Loading...
