Product Overview

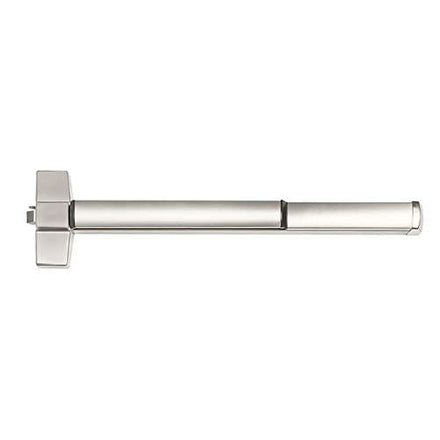

Corbin Russwin ED5200A Grade-1 Fire-Rated Rim Exit Device, 3-Hour UL Fire-Listed
All exit devices manufactured by Corbin Russwin undergo rigorous testing, both in the lab and field, with testing procedures that go beyond industry standards. Abuse and cycle tests prove time and again the durability of the entire ED5000 series, and backed by a 5-year warranty.
- Exit Only (Corbin Russwin outside trim sold separately)
- Designed for standard width stile applications on wood and metal doors
- All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware.
- ED5200A - Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 4' x 8' single or 8' x 8' double doors
- UL symbol on active case cover indicates listing
Applications
- Schools
- Hospitals
- Office Buildings
- Theaters
| Brand | |
|---|---|
| Finishes |
613e Dark Oxidized Satin Bronze equivalent, BSP - Black Suede Powder Coat, 606 Satin Brass, 611 Bright Bronze, 605 Bright Brass, 630 Satin Stainless Steel, 613 Oil Rubbed Bronze, WSP - White Suede Powder Coat, 612 Satin Bronze |
| Length |
36" (for 30" to 36" Doors), 48" (W048 for 36" to 48' Doors) |
| ANSI/BHMA Standard |
Meets A156.3, Type 1, Grade 1 |
| Usage |
Heavy Duty |
| Fire-Rating |
UL and cUL Listed – up to 3 Hours |
| Stile Type |
Wide (Standard) |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Latchbolt |
3/4" (19mm) throw, stainless steel pullmantype with stainless steel deadlocking latch |
| Strike |
Surface-mounted 3/8" (10mm) diameter roller strike |
| Dogging Feature |
None |
| Handing |
Non Handed – Completely Reversible |
| Door Applications |
1-3/4" Metal and Wood Doors |
| Warranty |
5 Year |
| Buy American Act Compliance |
Meets Buy American Act - Made in USA |
