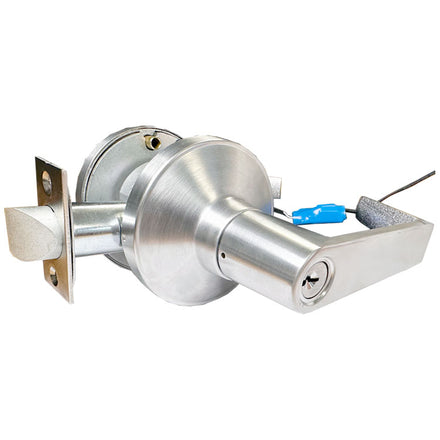

Command Access CL190-HD Motorized Electrified Storeroom Lever Lock, Fail-Safe (EL) / Fail-Secure (EU) Field Selectable

$390.82
This item ships FREE! Usually Ships:  5-10 Business Days
  • Heavy-Duty, ANSI/BHMA Grade-1 certified
  • Fail-Safe (EL) & Fail-Secure (EU) field selectable with flip of a switch
  • Universal voltage input (11-30v)

Available Options:

Clear

Product Overview

Command Access CL190-HD Series Low-Energy Motorized Lever Control Cylindrical Lock

The Command Access CL190-HD series low-energy motorized lever control cylindrical lock is ideal for any continuous duty application or condition requiring low surge and hold current. It is built on a heavy-duty cylindrical lock chassis & is made for high-use environments. The whole assembly is produced right here in the US. The motor module auto-detects anything from 11-30VDC & includes a dip switch to change from Fail Safe (EL) to Fail Secure (EU).

When you choose the CL190-HD, you can be assured that it will work for your unique needs and hold up to rigorous daily use.

  • Electrified – motor-driven lever control
  • Universal voltage input (11-30v)
  • Fail Safe (EL) & Fail Secure (EU) field selectable with flip of a switch
  • Low maximum current draw 300 mA: use more locks on a single power supply
  • Low holding current 100 mA: reliable operation and meets sustainable consideraton
  • Request-to-exit built-in
  • Available with Schlage C keyway, SFIC (less core), or LFIC (Schlage - less core)
  • 25-year mechanical warranty
  • 5-year electronic warranty
  • Made in the USA

Voltage:

  • Voltage range – 11 to 30 VDC
  • Standard - Average Current Peak: 300mA, Average Current Hold: 100mA

Functions (field selectable with flip of a switch):

  • CL190HD-EU: Outside lever unlocked (EU) electronically. Latchbolt retracted by key out-side or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.
  • CL190HD-EL: Outside lever locked (EL) electronically. Latchbolt retracted by key outside or lever inside. Switched power allows outside lever to retract latchbolt. Inside lever is always free for immediate egress.

CL190-HD-Codes

Brand

Finishes

626 Satin Chrome, 622 Matte Black, 613 Oil Rubbed Bronze

Lever Design

L6 (Bent Lever), L17 (Curved Lever)

Cylinder

P: Schlage C Keyway, SFIC: Small Format IC Prep (less core), LFIC: Large Format Schlage IC Prep (less core)

Voltage

Voltage range – 11 to 30 VDC

Lock Function

Electrified Storeroom

Usage

Heavy Duty

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Handing

Non-Handed

Backset

2-3/4"

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Door Thickness

1-3/4"

Buy American Act Compliance

Meets BAA - Buy American Act
