Product Overview

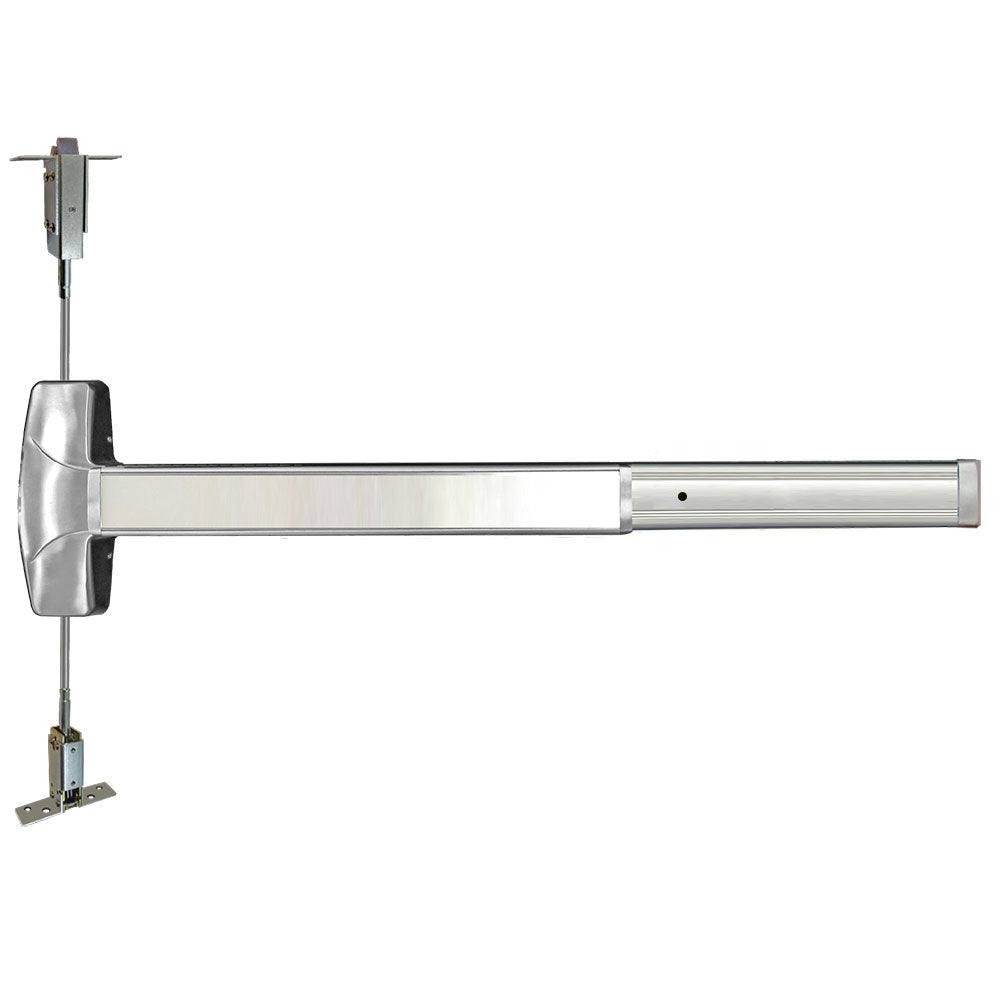

Cal-Royal N-77CVR / N-F77CVR Grade-1 Concealed Vertical Rod Exit Device, Exit Only
For use in institutions, schools, universities, and commercial buildings where heavy-duty, reliable operation is a requirement.
- Exit Only (Outside Trim Sold Separately)
- For Doors - Wood or Metal. 1-3/4" (44.5 mm) minimum thickness, 4-1/2" (114 mm) minimum stile width
- Top & Bottom Chassis - Steel Material
- Chassis Cover - Zinc Material
- Mounting - Furnished standard with wood and machine screws
- End Cap - Stainless Steel Construction
- Hand - Handed. Easily field-reversible. Specify at time of order LHR or RHR for convenience.
- ANSI Standard - A156.3, Grade 1

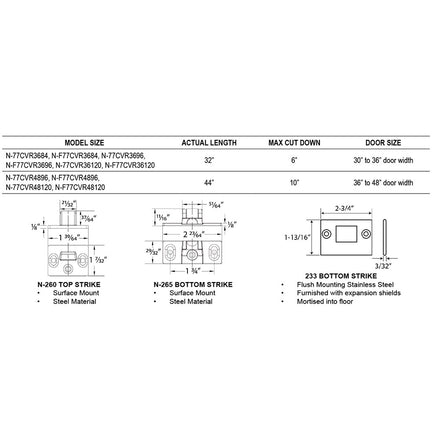

- Strikes - N-260 & N-265 (Steel), 233 (Stainless Steel)
- Rail Height - Specify door opening and mounting height of center line of rail when ordering a Vertical Rod Exit Device 41” from floor
| Brand | |
|---|---|
| Finishes |
US32D (630) Satin Stainless Steel, L1 Black |
| Size |
36" x 84", 36" x 96", 48" x 96" |
| Device Type |
Concealed Rod Device |
| Stile Type |
Wide (Standard) |
| Usage |
Heavy Duty |
| ANSI Grade |
ANSI Grade 1 |
| Fire-Rating |
None |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Includes Trim |
No |
| Handing |
Handed - Field Reversible |
| Strike |
N-260 & N-265 (Steel), 233 (Stainless Steel) |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Warranty |
Limited Lifetime Warranty |
