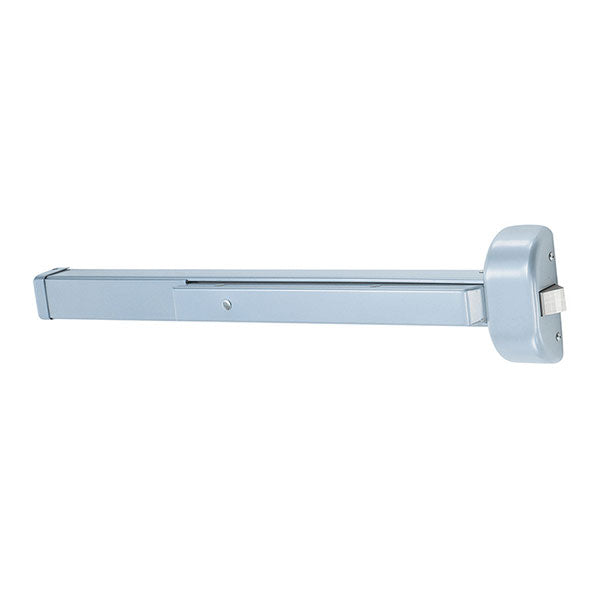

Arrow S1250 Rim Exit Device

$268.82

Usually Ships: 1-2 Business Days

Available Options:

Quantity:

Added to Cart

Arrow s1250/FS1250 Grade-1 Rim Exit Device

The Arrow S1250 Rim Exit Device offers a reliable and dependable solution at a price you can afford.

Chassis & Cover: Non-ferrous alloy
End caps: Metal
Doors:
- 1-3/4" thick
- 4-1/2" minimum stile
Handling: Non-handed
Dogging: Allen-type key standard, cylinder available.
Latchbolt: 3/4" throw, stainless steel
Rail Assembly: Steel
Rail Size:
- F - for 32-1/4" to 36" door widths
- E - 24" for 24" to 32" door widths
- G - 48" for 36-1/4" to 48" door widths
Finishes: AL, BRZ (sprayed finishes)

Certification

ANSI/BHMA A156.3, Grade 1
Underwriters Laboratories (UL and CUL) listed for accident hazard (panic) standard.
Fire Exit hardware for hollow metal doors, UL and CUL listed for 3 hour, A label and lesser doors, Prefix "F" before part number.
ANSI A117.1 Accessibility Code
Fire Exit Hardware for wood doors, listed up to 1-1/2 hour, B label doors
All exit devices comply with life safety code NFPA 101.
All fire rated devices comply with fire door and window code NFPA80.

Brand	Arrow
Finishes	689 Aluminum (Powder Coated), 690 Dark Bronze (Powder Coated)
ANSI/BHMA Standard	Certified ANSI/BHMA A156.3, Grade 1
Usage	Medium Duty
Fire-Rating	UL and CUL listed for 3 hour, A label and lesser doors, Prefix "F" before part number
Stile Type	Wide (Standard)
Minimum Stile Width	4-1/2"
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Strike	S38, S24 for Fire-Rated Device
Trim	None - Exit Only (Outside Trim Sold Separately)
Handing	Completely Reversible
Warranty	10 Years

Arrow S1250 Rim Exit Device
