Alarm Lock

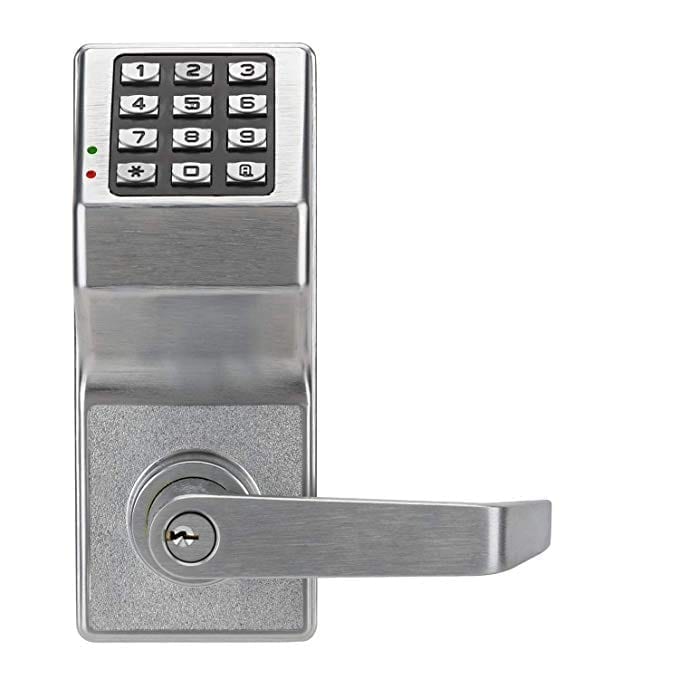

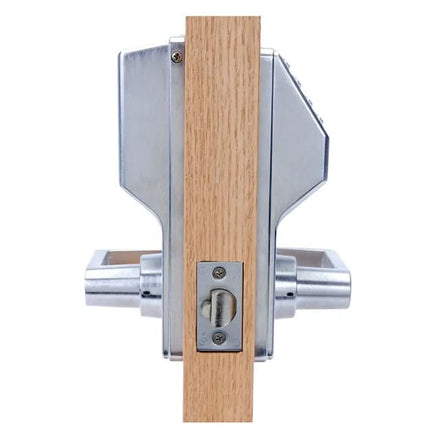

Alarm Lock DL2700 Trilogy T2 Electronic Standalone Digital Keypad Cylindrical Lock, Weatherproof

$431.92
This item ships FREE! Usually Ships:  Same Day
  • Heavy-Duty Grade-1 standalone electronic lock
  • Water-sealed for exterior or interior use, temp range +151°F to -31°F
  • Manually programmable, up to 100 PIN codes - Mechanical key override

Available Options:

Clear

Product Overview

Alarm Lock DL2700 Pushbutton Cylindrical Door Lock, 100 Users, Straight Lever, Weatherproof

Trilogy® T2 DL2700: #1 Standalone Electronic Keyless Access Lock in its class year after year

Trusted By More Leading Retailers, Firms, Schools, Hospitals and Airports

OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress

KEYPAD: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced

  • All DL2700 locks are now weatherproof - water-sealed for use inside and out, with operational temperature range of +151°F to -31°F (+66°C to -35°C)
  • Grade 1 Durability. Dependable lockset with rugged clutch mechanism, plus vandal-proof all metal keypad.
  • Ideal for schools, healthcare, pharmacies, rental properties, offices, retail and airports.
  • Multi-level user codes: Master, 10 managers, 90 users, 3 service codes
  • Up to 100 different user codes (3-6 digits) - 100% keypad programmable with a fingertip
  • Install in minutes; Eliminate the need for keys & distribution
  • Retrofits cylindrical knob sets and digital locks using slightly modified ANSI 161 Series Prep
  • Standalone battery operated; 5 AA batteries rated at 200,000 cycles
  • Non-handed for easy installation and versatility

alarm-lock-applications

Brand

Finishes

US19 Matte Black, US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome

ANSI/BHMA Standard

BHMA Grade 1 Lockset

Usage

Heavy Duty

Lock Function

Pushbutton Keypad

User Codes

100 +3 +1

Cylinder & Keys

5-pin or 6-pin conventional, keyed different, with 2 keys

Backset

2-3/4"

Strikes

1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included

Door Thickness

1-5/8 to 1-7/8"

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Handing

Non Handed – Completely Reversible

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Operating Temperature

+151°F to -31°F (+66°C to -35°C)

Power

5 AA alkaline batteries are now rated at 200,000 cycles, supplied

Reader Type

Keypad

Door Applications

Metal or Wood Doors

Warranty

2 Years
