Product Overview

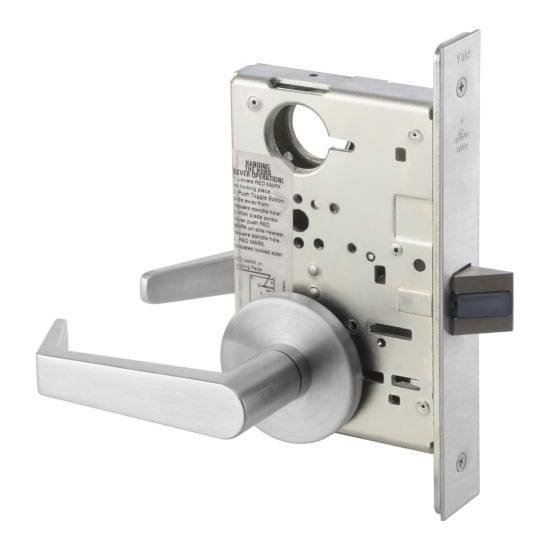

Accentra (formerly Yale) AUR8801FL ANSI/BHMA Grade 1 Certified Mortise Lock, Passage Function, Sectional Augusta AUR Lever/Rose Trim
Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

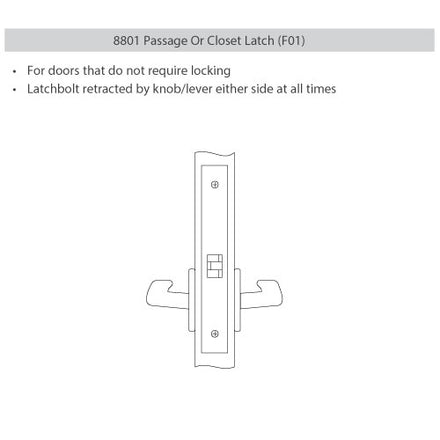

ANSI F01 – Passage/Closet – For doors that do not require locking. Latchbolt retracted by lever either side at all times.
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL-cUL: UL/cUL fire rated up to 3 hours
- Windstorm: Certified (refer to local codes)
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard
- Reversibility: Field reversible handing
| Brand | |
|---|---|
| Finishes |
626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 613e Dark Oxidized Satin Bronze equivalent, BSP - Black Suede Powder Coat |
| Lock Function |
Passage |
| ANSI Function |
F01 |
| Usage |
Heavy Duty |
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.13, Series 1000 |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Fire-Rating |
UL and cUL Listed - up to 3 Hours |
| Handing |
Right hand is standard; Reversible in the field |
| Backset |
2-3/4" |
| Latchbolt |
3/4" throw, stainless steel one-piece anti-friction |
| Strike |
4-7/8" Curved Lip Strike with a 1-1/4" lip length |
| Case |
wrought steel, zinc dichromated |
| Hubs |
3/8" solid steel, fine-blanked and heat treated for additional strength |
| Armored Front |
8" x 1-1/4" |
| Door Thickness |
1-3/4" |

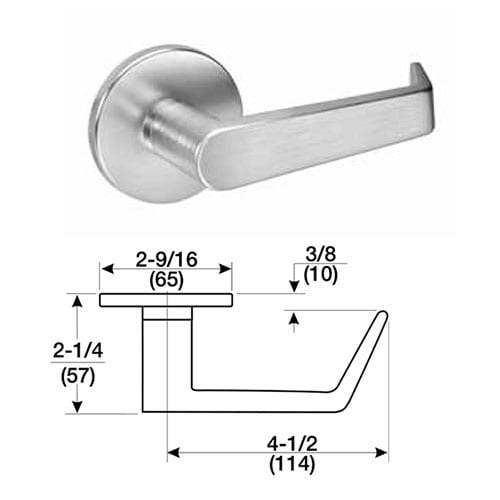

| Lever Design |
AUR (Augusta) |
| Warranty |
10 Years |
