Accentra (Formerly Yale) 4707LN AU Entry Lever Lockset

$180.79
Usually Ships:  2-3 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade 1
  • ANSI Function F109: Entry
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

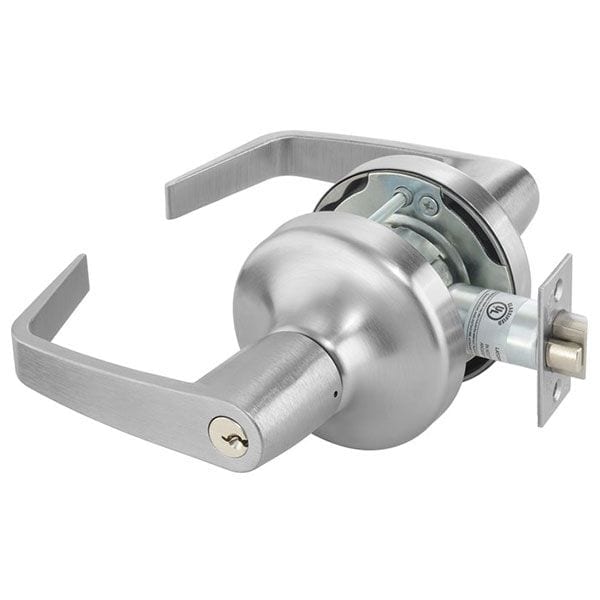

Accentra (formerly Yale) AU4707LN ANSI/BHMA Grade 1 Certified Cylindrical Lock, Entry Function, Augusta Lever

Accentra 4700LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use, and installation are required at an economical price.

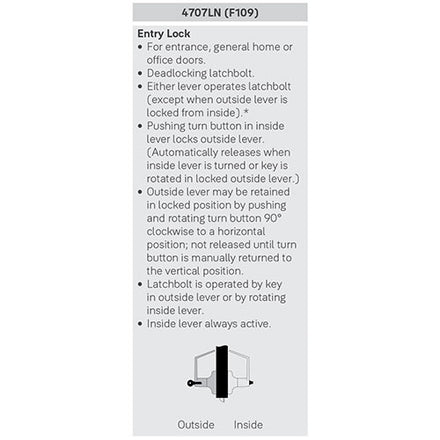

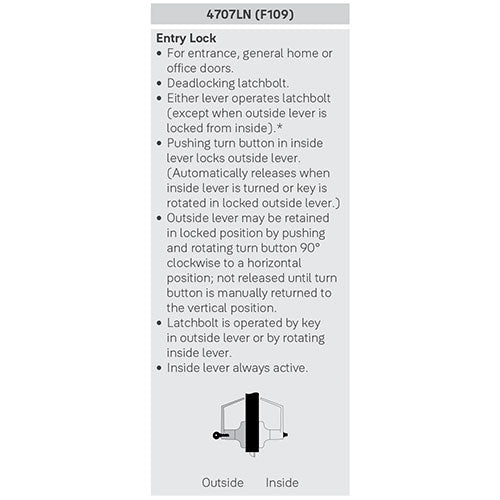

ANSI Function F109 - Turn/Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned.

  • Freewheeling Trim
  • Versatile: Field reversible handing
  • Economical: Priced affordably to suit projects of all budgets
  • Secure: Quality security from a trusted brand for over 170 years
  • Strong & Reliable: ANSI/BHMA Grade 1 certified for long life and reliability

codes

Brand

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 612 Satin Bronze, 625 Bright Chrome, 613e Dark Oxidized Satin Bronze equivalent, BSP - Black Suede Powder Coat

Lock Function

Entry (Entrance)

ANSI/BHMA Standard

Certified ANSI/BHMA A156.2, Series 4000 Grade 1

Cylinder & Keys

6-pin conventional, keyed different, with 2 keys

Keyway

Schlage C Keyway, Accentra/Yale E1R (Para) Keyway

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

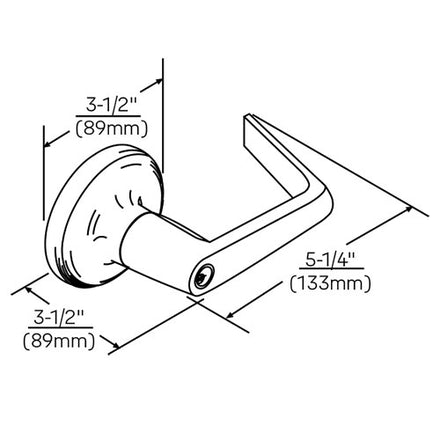

Lever Design

AU (Augusta)

Door Thickness

1-3/8" to 1-3/4"

Fire-Rating

UL-cUL fire rated up to 3 hours

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Usage

Heavy Duty

Latch

1/2” throw, deadlocking - 1-1/8" x 2-1/4" face

Warranty

5 Year
