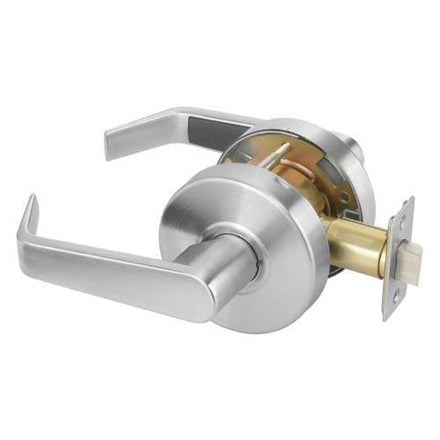

Accentra (Formerly Yale) 4601LN AU Passage Lever Set

$55.22
Usually Ships:  1-2 Business Days
  • ANSI/BHMA Certified A156.2, Grade 2
  • ADA compliant, 3-hour fire-rated
  • Both levers always unlocked

Available Options:

Clear

Product Overview

Accentra (formerly Yale) AU4601LN ANSI/BHMA Grade 2 Certified Cylindrical Lock, Passage Function, Augusta Lever

The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions, ensuring reliability and peace of mind.

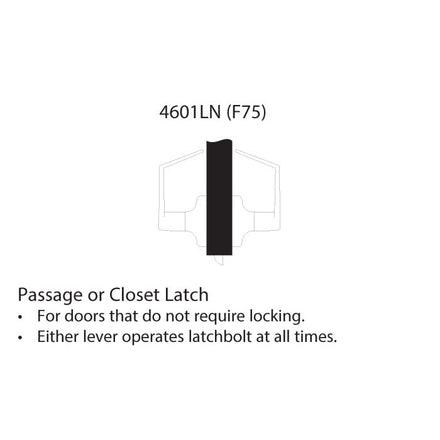

ANSI Function F75 - Keyless - Latch bolt by levers at all times.

  • Versatile: Field reversible handing
  • Economical: Priced affordably to suit projects of all budgets
  • Strong & Reliable: ANSI/BHMA Grade 2 certified for long life and reliability

codes

Brand

Lock Function

Passage

Finishes

626 Satin Chrome, 605 Bright Brass, 606 Satin Brass, 625 Bright Chrome, 613e Dark Oxidized Satin Bronze equivalent, BSP - Black Suede Powder Coat

ANSI/BHMA Standard

Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2

Backset

2-3/4"

Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation

Handing

Non-Handed

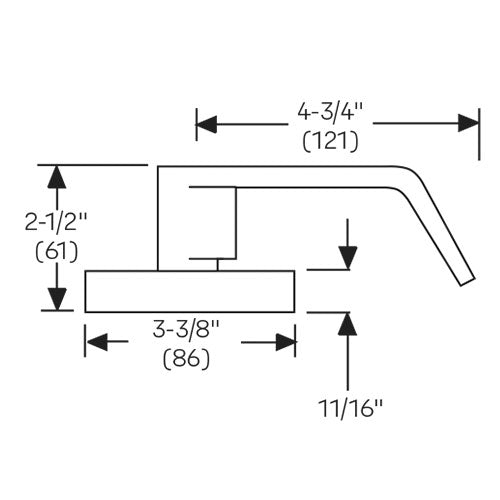

Lever Design

AU (Augusta)

Door Thickness

1-3/8" to 1-3/4"

Fire-Rating

UL-cUL fire rated up to 3 hours

ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code

Usage

Medium Duty

Latch

1/2" throw - 1-1/8" x 2-1/4" face

Warranty

3 Year
